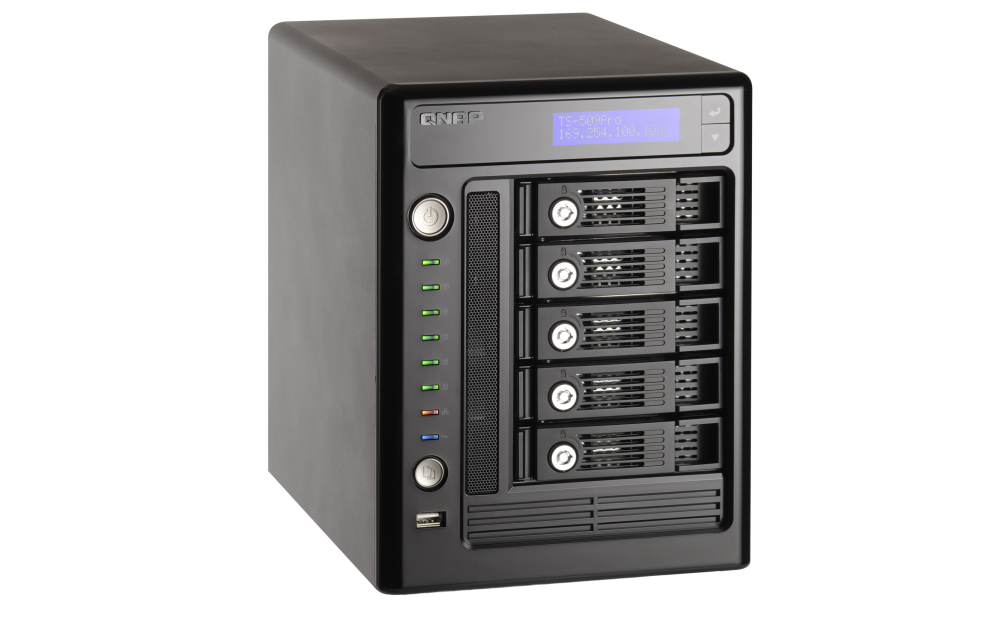

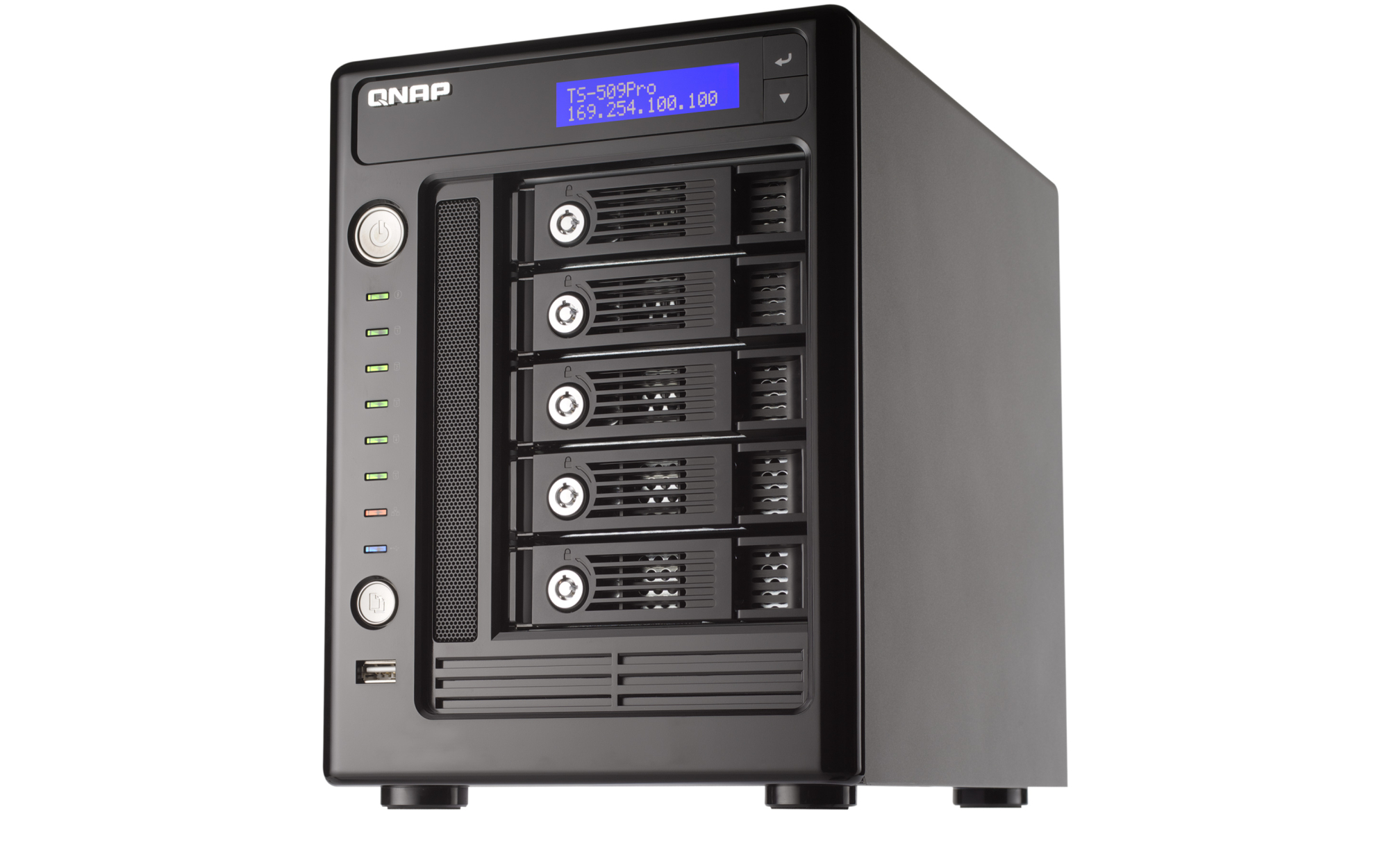

TS-509 Pro Specification
| Processor | Intel Celeron Processor 1.6GHz | ||||
| Memory | 1GB DDRII RAM, 128MB flash (DOM) | ||||
| HDD Capacity | 5 x 3.5" SATA I/II NOTE:
| ||||
| HDD Tray | 5 x hot-swappable and lockable tray | ||||
| LAN Port | 2 x Gigabit RJ-45 Ethernet port | ||||

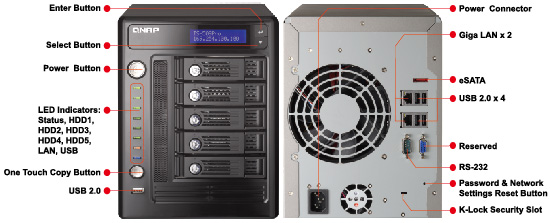

| LED Indicators | Status, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, LAN, USB | ||||
| USB | 5 x USB 2.0 (Front: 1; Back: 4) Support USB printer, disk, pen drive, USB hub, and USB UPS etc. | ||||
| eSATA | 1 x eSATA port (Back) | ||||
| Buttons | System: Power button, USB one-touch backup button, reset button | ||||
| LCD Panel | Mono-LCD display with backlight Enter button, Select button for configuration | ||||
| Alarm Buzzer | System warning | ||||
| Form Factor | Tower | ||||
| Dimensions | 261.1(D) x 188.5(W) x 261.1(H) mm 10.28(D) x 7.42(W) x 10.28(H) inch | ||||
| Weight |
| ||||
| Operation Environment | Temperature 0~40˚C Humidity 0~95% R.H. | ||||
| Power Supply | Input: 110-240V AC, 50/60Hz, Output: 250W | ||||
| Power Consumption | sleep: 39W In Operation: 63W Power-off (in WOL mode): 2.25W with 5 x640GB HDD installed | ||||
| Secure Design | K-Lock security slot for theft prevention | ||||
| VGA | Reserved VGA interface for maintenance | ||||
| RS-232 | RS-232 x1 | ||||
| Fan | 12cm quiet cooling fan (12V DC) | ||||
| Sound Level: | Standby: 34.2 dB In operation: 41.2dB | ||||
 | |||||
