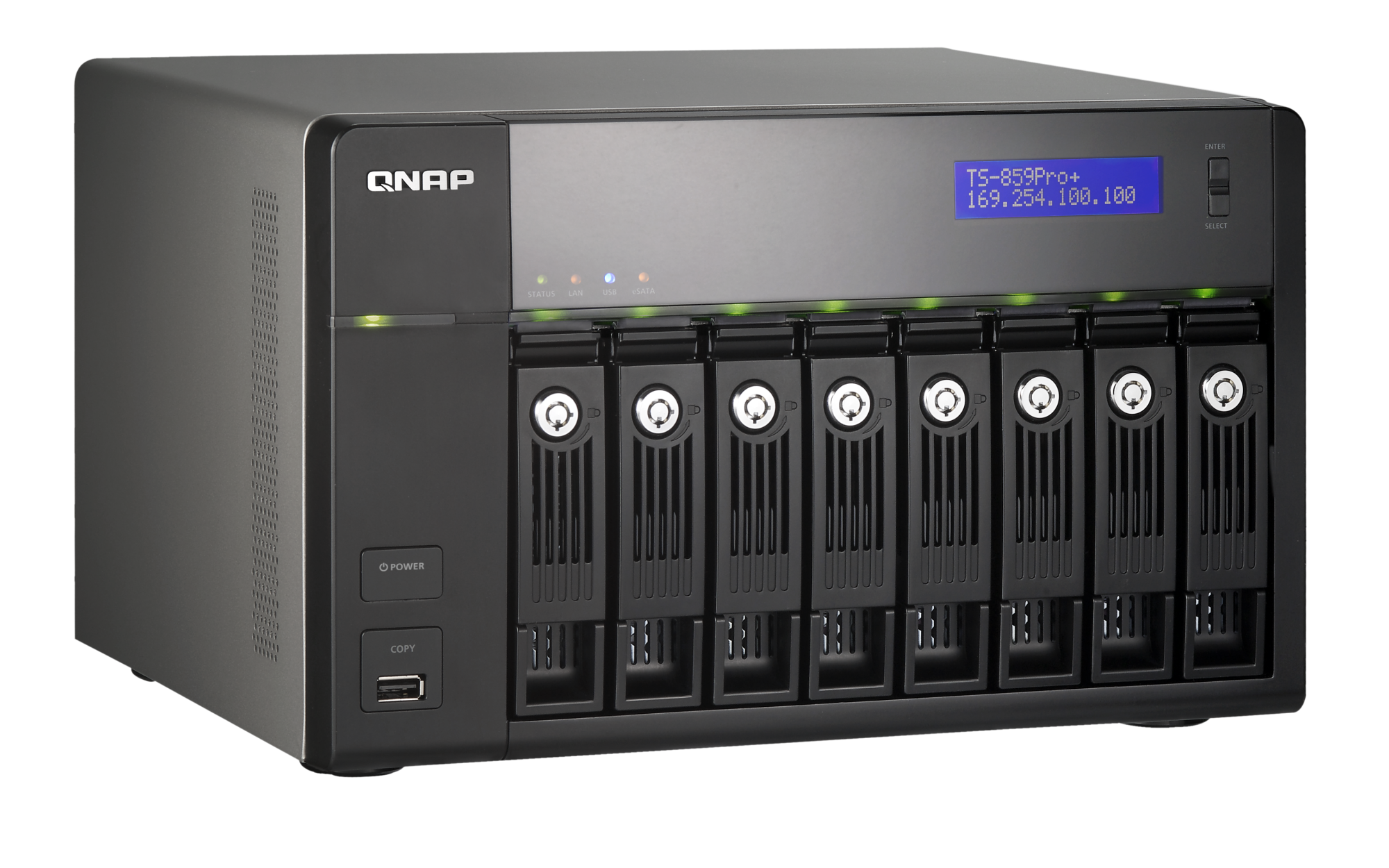

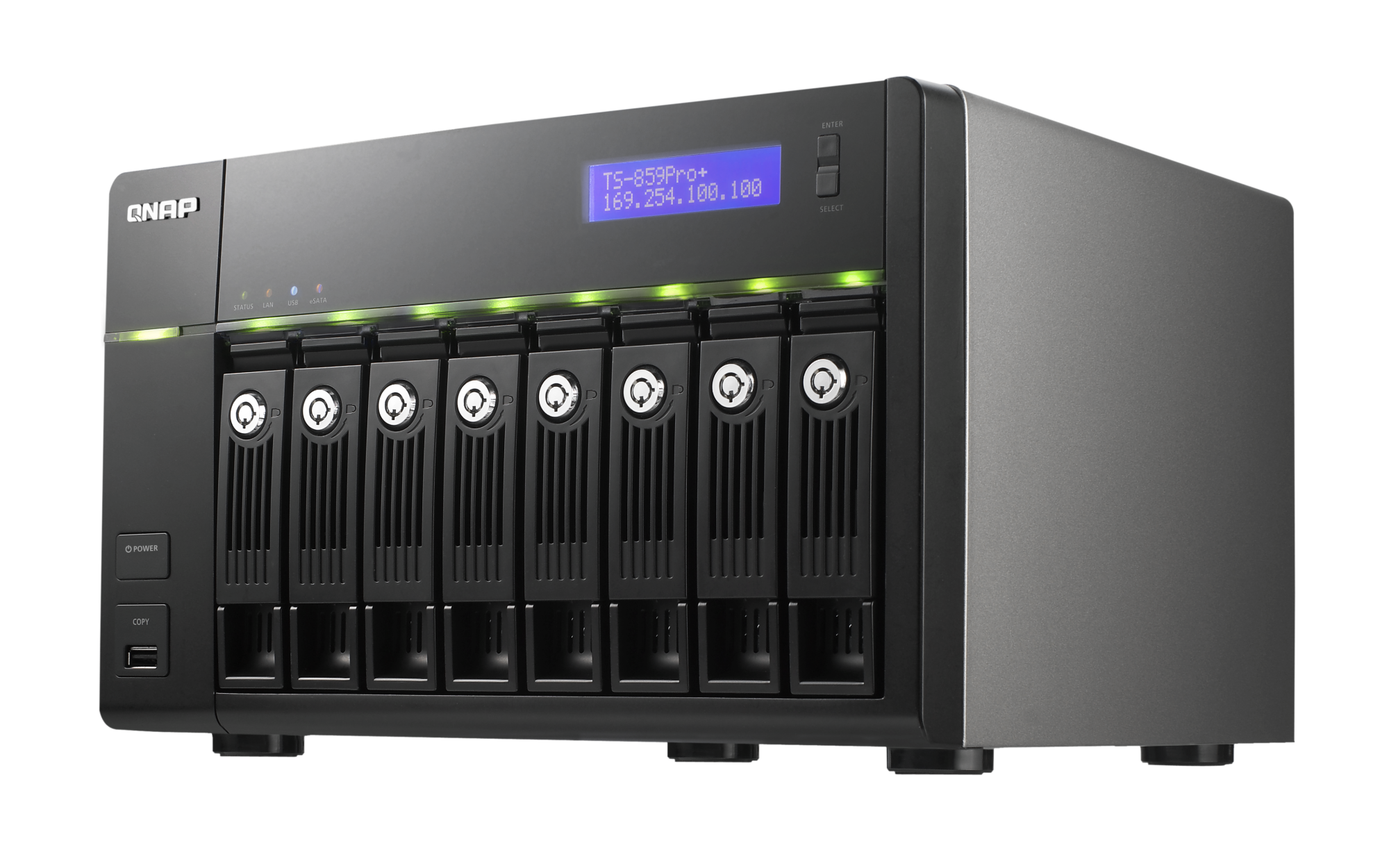

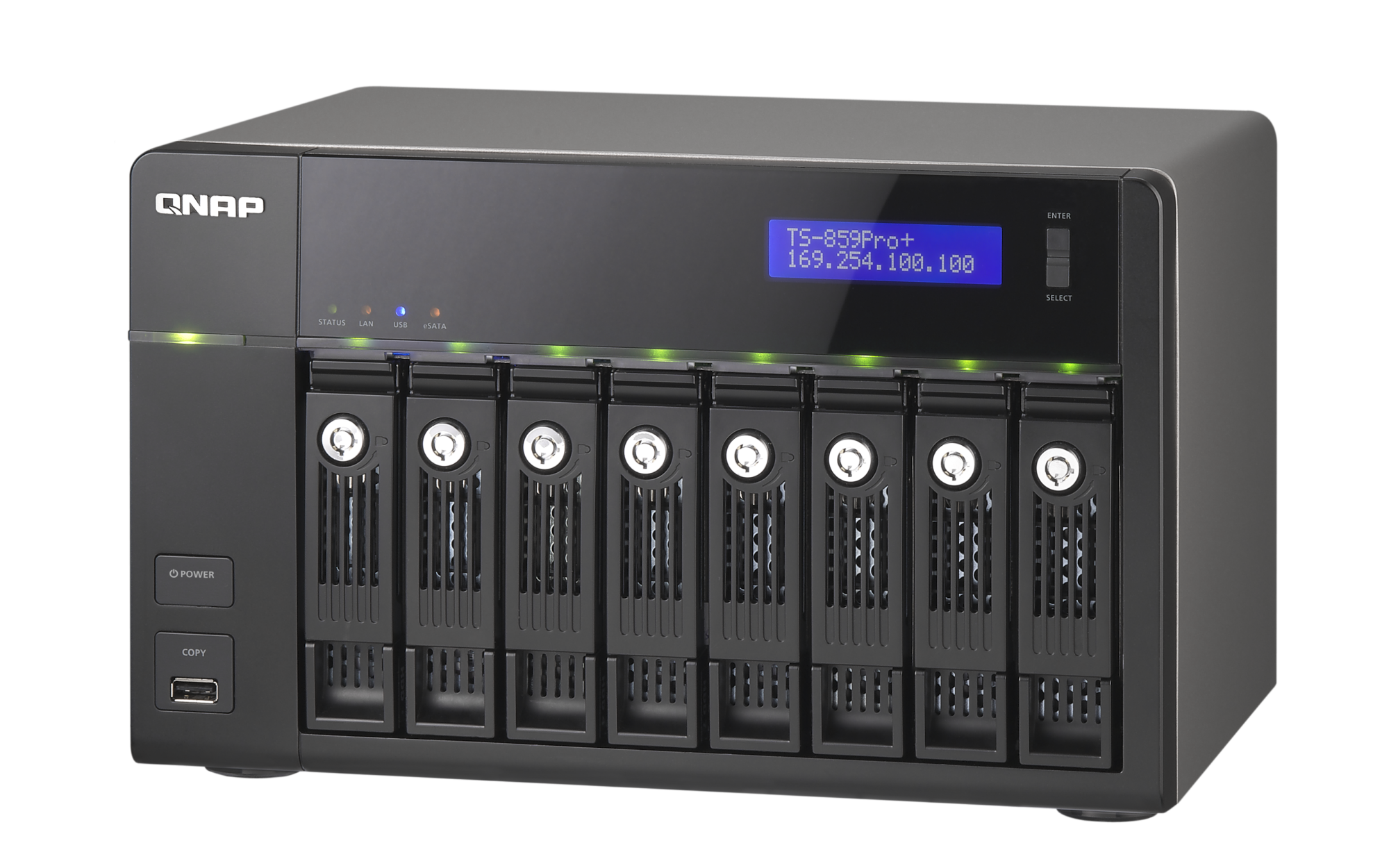

TS-859 Pro+ Specification
| CPU | Intel® Atom™ Processor D525 1.8GHz (Dual-Core) |
| DRAM | 1GB RAM |
| Flash Memory | 512MB DOM |
| HDD | 8 x 2.5 or 3.5" SATA NOTE:
|
| HDD Tray | 8 x Hot-swappable and lockable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |

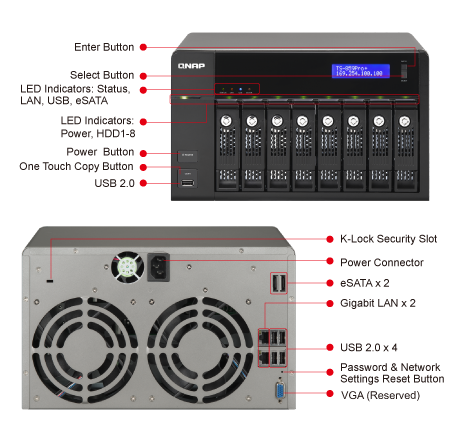

| LED Indicators | Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6, HDD 7, HDD 8 |
| USB | 5 x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS etc. |
| eSATA | 2 x eSATA port (Back) |
| Buttons | Power button, USB One-Touch-Backup Button, Reset button |
| LCD panel | Mono-LCD display with backlight ,Enter button, Select button for configuration |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Dimensions | 185.2 (H) x 298.2 (W) x 235.4 (D) mm 7.29 (H) x 11.74 (W) x 9.27 (D) inch |
| Weight | Net weight: 7.3 kg (16.08 lbs) Gross weight: 8.6 kg (18.94 lbs) |
| Sound Level (dB) | w/o HDD installed: 40.0 dB Stand by: 40.4 dB In operation: 40.8 dB (with 8 x 750GB HDD installed) |
| Power Consumption (W) | Sleep mode: 30W In Operation: 59W Power-off (in WOL mode): 1W (with 8 x 1.5TB HDD installed) |
| Temperature | 0~40˚C |
| Humidity | 0~95% R.H. |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 350W |
| Secure Design | K-lock security slot for theft prevention |
| Expansion Slot | 1 (for network or storage expansion) |
| VGA | Reserved VGA interface for maintenance |
| Fan | 2 x quiet cooling fan (12 cm, 12V DC) |
 | |
注意：请仅使用 QNAP 内存模块来保持系统的性能与稳定性。若 NAS 设备有多个内存模块，请使用规格相同的 QNAP 模块，并参考硬件用户手册安装兼容的 QNAP 内存模块。
警告：使用不受支持的模块可能导致性能下降、引发错误或使操作系统无法启动。
QNAP 有权视供货商产品供货情况，更换部分零件或配件。其兼容性与稳定性皆经过相同严格的测试检验，请用户放心使用。
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
设计及规格若有变更，恕不另行通知。产品图仅供示意，实际产品可能有所不同。
由于屏幕显示误差，产品实际颜色亦可能和网站所示有所不同。
