TVS-h877AX
Enterprise ZFS Hybrid Desktop NAS | Accelerate Creative and Virtualization Workflows
Powered by an AMD Ryzen™ 7000 series 6-core processor and DDR5 memory, the TVS-hx77AX series combines ZFS data integrity with upcoming Qtier storage tiering technology to redefine performance standards for professional video collaboration and enterprise virtualization.
Zen Architecture & DDR5
AMD Ryzen™ 7000 series 6-core processor with up to 192 GB DDR5 memory (optional ECC), enabling heavy multitasking and high-load VM applications.
U.2 SSD Acceleration
Hybrid drive bays with U.2 PCIe Gen 4 NVMe SSD support, delivering massive bandwidth for virtualization, databases, and high-speed video workflows.
NFS over RDMA
Enable NFS over RDMA to bypass CPU overhead, transforming the NAS into high-throughput, low-latency direct storage for AI training and inference workloads.
10GbE & 2.5GbE
Built-in dual 10GBASE-T and dual 2.5GbE network ports to accelerate large file sharing and data-intensive transfers.
PCIe Gen 4 Expansion
Three PCIe Gen 4 slots for installing 25GbE NICs or discrete GPUs (NVIDIA RTX™ series).
Virtualization
Support for virtual machines and containerized applications, providing centralized storage, backup, disaster recovery, and storage expansion.

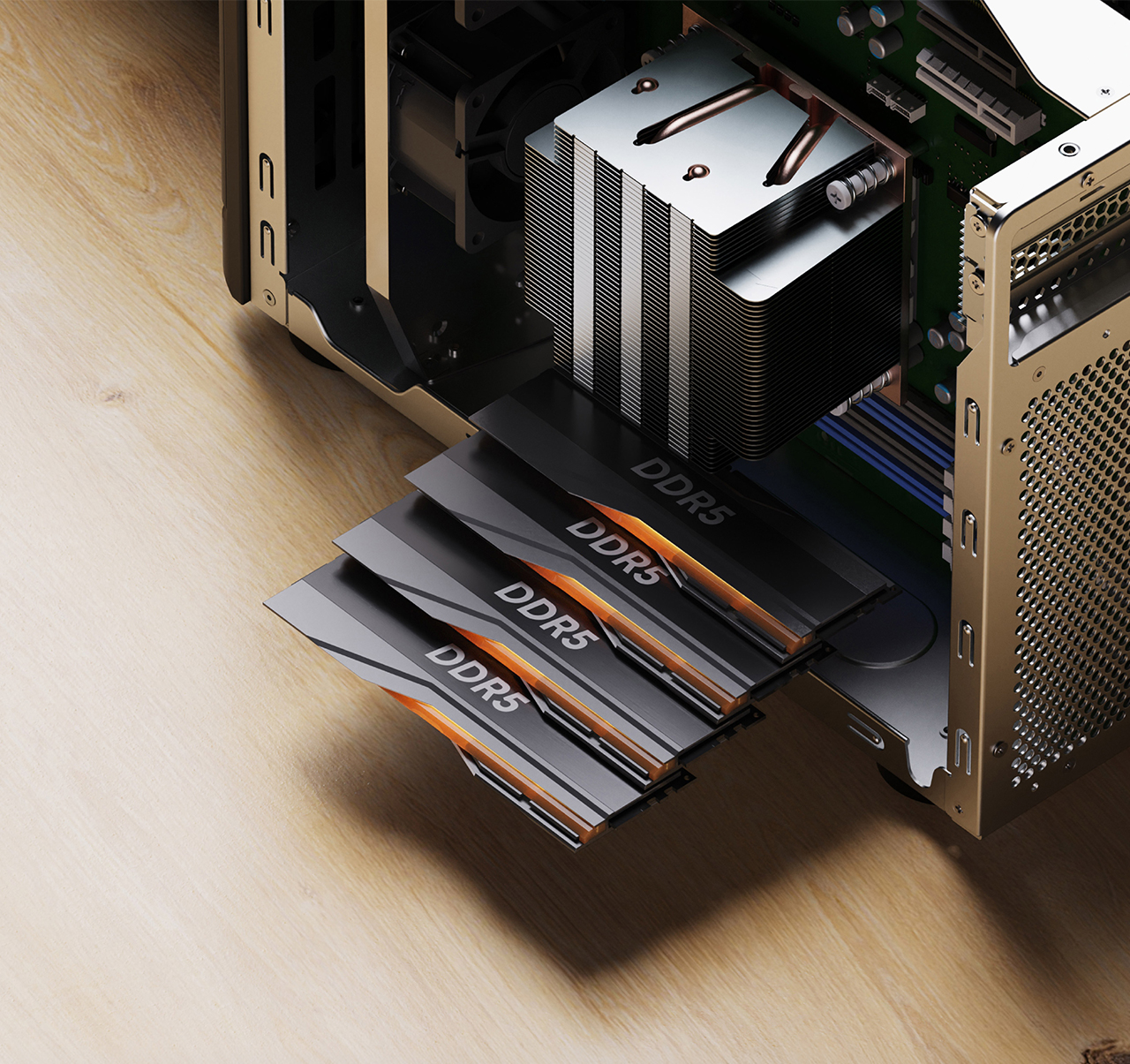

AMD Ryzen™ 7000 & DDR5: Pushing Multitasking to the Limit
Featuring the latest Zen 4 architecture AMD Ryzen™ 5 / 7 PRO 7000 series processors, delivering significant performance gains. Combined with expandable DDR5 memory up to 192 GB, it effortlessly handles demanding workloads including multiple virtual machines (VMs), containers, and high-resolution video transcoding.

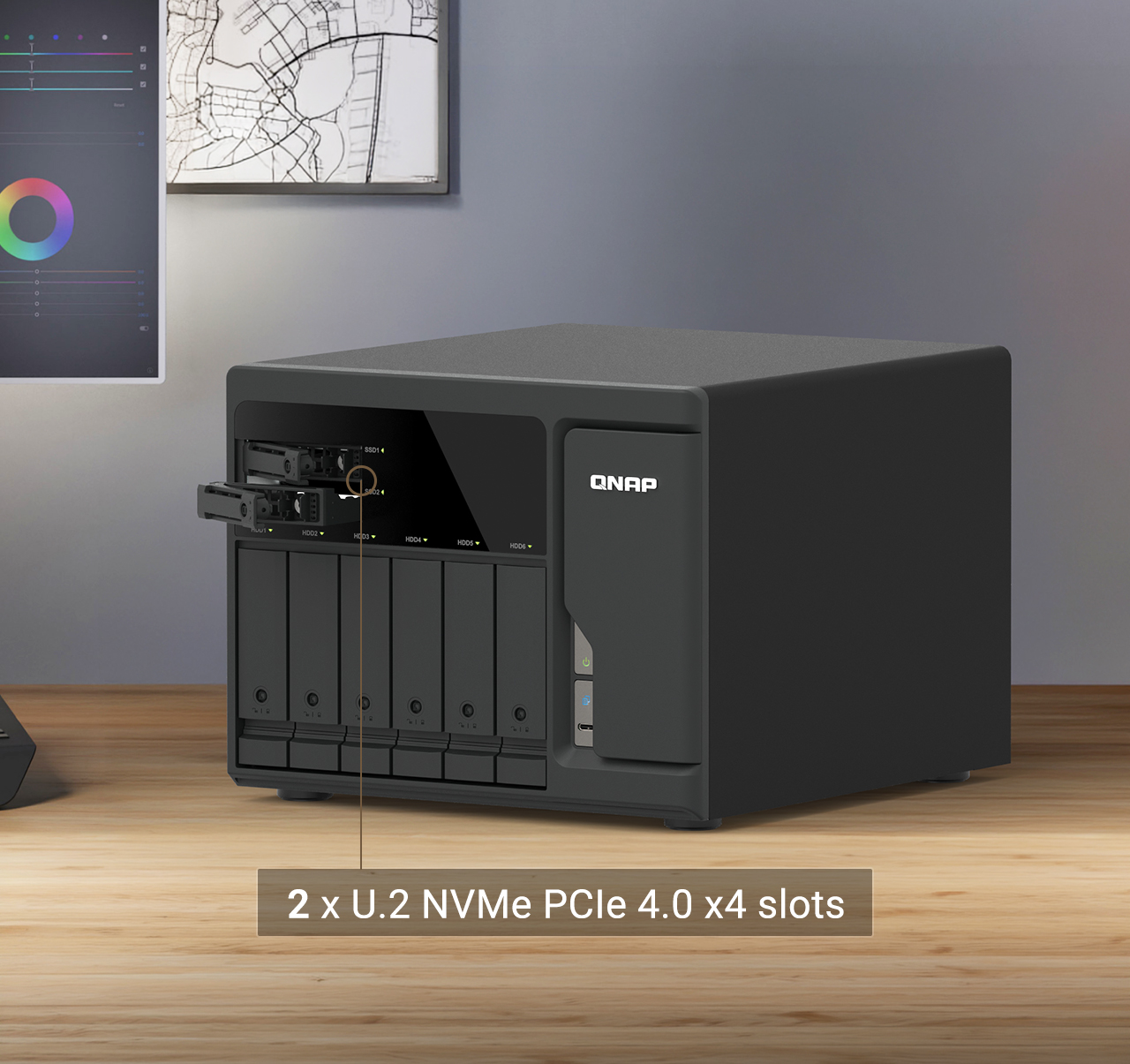

Fusing U.2 NVMe Speed with HDD Capacity — Qtier Smart Tiering Coming Soon
Maximize storage efficiency without compromise. The TVS-hx77AX features dedicated 2.5-inch U.2 NVMe PCIe Gen 4 SSD slots for ultra-low-latency access. With the upcoming QuTS hero h6.0, Qtier storage tiering will be supported, allowing you to manually move hot data to high-speed SSDs while cold data remains on HDDs — achieving the perfect balance between performance and cost.
- TVS-h877AX: 2 x U.2 NVMe PCIe 4.0 x4 slots
- TVS-h877AX: 4 x U.2 NVMe PCIe 4.0 x2 slots

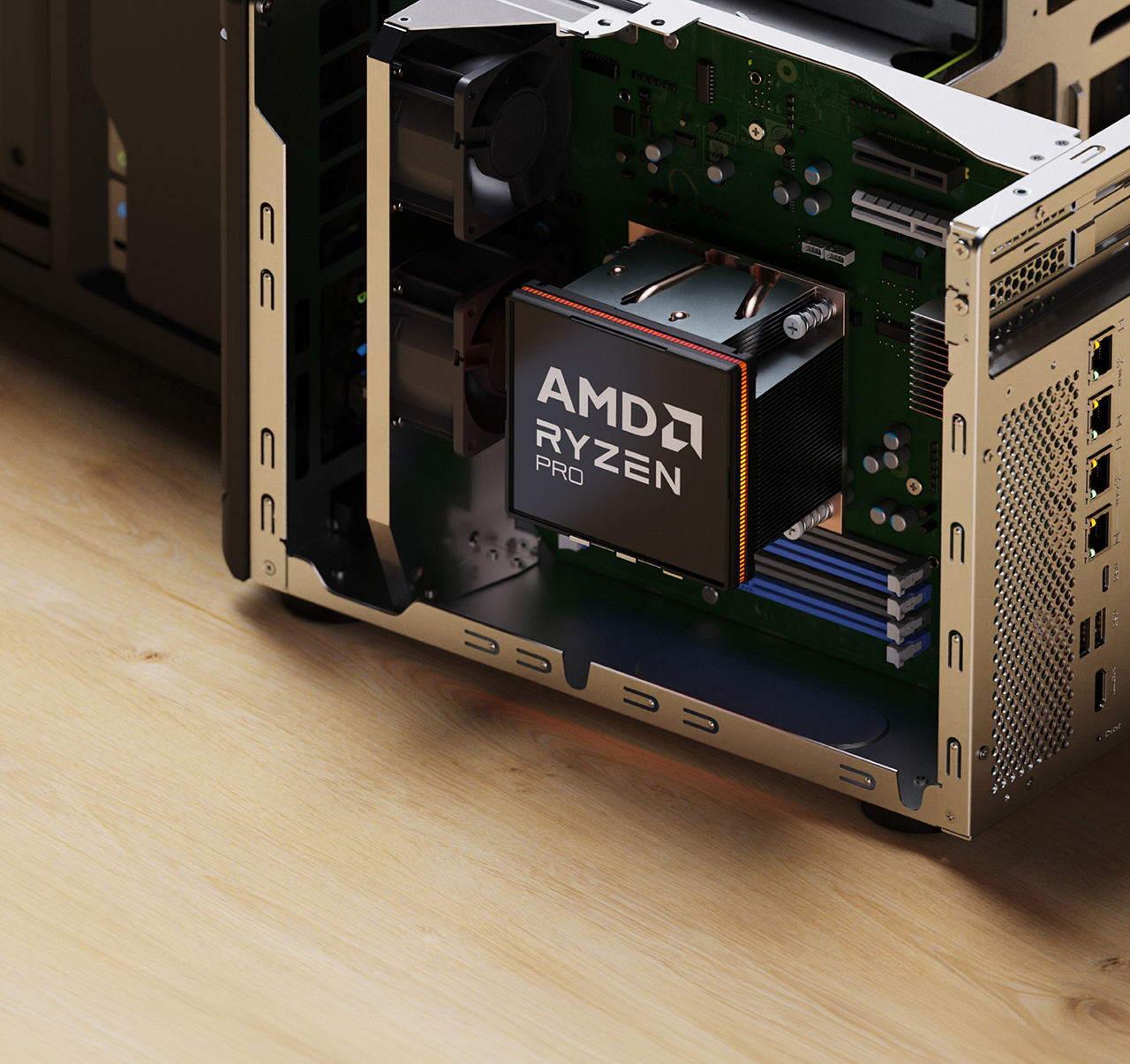

Powered by AMD Ryzen™ PRO 7000 Series 6-Core Processor
The TVS-h877AX features an AMD Ryzen™ 5 PRO 7645 processor (Zen 4 architecture), delivering exceptional multitasking performance and energy efficiency. Combined with 64 GB DDR5 memory and 3 x 25GbE SmartNICs, it achieves outstanding sequential throughput and random IOPS under high-load enterprise workloads.
Memory
64 GB DDR5-4800 (32 GB x 2), expandable up to 192 GB (optional ECC)
U.2 NVMe SSD Transfer Speed
-
5 x 25GbE SMB Sequential Throughput (1M)
Read MB/sWrite MB/s -
5 x 25GbE iSCSI Random IOPS (4K)
Read IOPSWrite IOPS
| 5 x 25GbE SMB Sequential Throughput (1M) |
Read
MB/s
|
Write
MB/s
|
|---|---|---|
| 5 x 25GbE iSCSI Random IOPS (4K) |
Read
IOPS
|
Write
IOPS
|
Tested by QNAP Labs. Actual results may vary depending on the environment.
Test Environment:
NAS: TVS-h877AX (AMD Ryzen™ 5 PRO 7645), memory upgraded to 64GB DDR5-4800 (32GB×2), with 3 x QXG-25G2SF-CX6
OS: QuTS hero h5.2.7.3232
Volume: Samsung 4 x PM9A3 1.92TB U.2 NVMe SSD, 8 x Samsung 870 EVO 1TB SATA SSD, RAID 5, Thick Volume
Client PC: 5 x Intel Core i3-8100, 4G, QNAP QXG-25G2SF-CX4, Windows Server 2019 + 1 x Intel Core i7-7700, 32G
IOmeter: RAM×4, 30s warm-up, 3-min continuous read/write, 1 worker, 32-outstanding

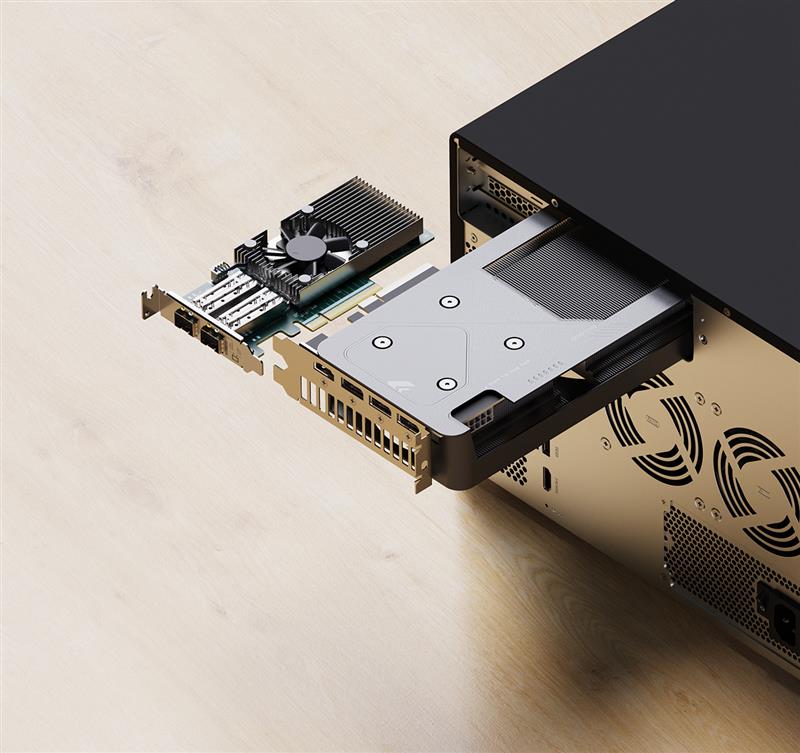

PCIe Gen 4 Expansion for Future Upgrades
The TVS-hx77AX features 3 PCIe Gen 4 slots, providing flexible hardware upgrades to meet growing business needs. Install 25GbE network cards for higher bandwidth, or add NVIDIA RTX™ 4000/5000 series graphics cards to boost AI computing and video processing capabilities.
- Slot 1: PCIe Gen 4 x4
- Slot 2: PCIe Gen 4 x8 (or x4)*
- Slot 3: PCIe Gen 4 x4
*Note: When Slot 1 is not in use, Slot 2 provides PCIe Gen 4 x8 bandwidth; when Slot 1 is in use, Slot 2 provides PCIe Gen 4 x4 bandwidth.
The Ultimate Virtualization Workstation with GPU Passthrough
TVS-h877AX is a powerful platform for virtualization. Equipped with a high-frequency AMD Ryzen™ processor and supporting up to 192 GB DDR5 memory, it runs multiple virtual machines and containers simultaneously without performance lag. By installing a discrete graphics card (up to 200W) in a PCIe Gen 4 slot, GPU passthrough can be enabled for virtual machines, dramatically boosting graphics performance for design, engineering, or AI analytics workloads.
知道更多：Explore Virtualization Station、Explore Container Station
High Availability (HA) with Dual-NAS Failover
Prevent unexpected downtime and data loss.
Build an HA cluster using two TVS-h877AX units — one as the active server and the other as the passive server. When the active server encounters an unexpected failure, the passive server automatically takes over, providing instant protection. This ensures uninterrupted storage services and system availability.
Easily set up, remove, or rebuild clusters via the High Availability Manager application.
Real-time data synchronization between active and passive servers minimizes data loss risk (RPO).
When the active server fails, the passive server can take over within 1 minute (RTO < 60 seconds).
AI-Powered Enterprise Search
- Build a Smart Knowledge Hub with RAG Search
TVS-h877AX integrates the Qsirch search engine with RAG technology, cloud-based LLMs, and generative AI to perform precise natural language searches across massive NAS file content, generating summaries and actionable insights.
Explore enterprise search solutions › - Full-Text Search
Search files by file name, content, title, metadata, email subject and body, file path, and more.
Explore Qsirch search engine › - Document Preview
Preview document content without opening files, view keyword-related paragraphs, and see sentences related to the file's topic. - Image Search
Search images by color or object. AI OCR can recognize and extract text from images. - At-a-Glance File Distribution
Stay informed about data and file storage usage and distribution on TVS-h877AX through charts and analytics.
选购配件
-
QM2-2P-244A
Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 170.5 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
-
QM2-2P-344A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P-384A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P10G1TB
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 152.65 × 18.9 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P2G2T
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 152.65 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
-
QM2-2P410G1T (EOL)
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen4 x 4 , 1 x AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 187 × 19.35 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P410G2T (EOL)
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen4 x 4 , 2 x AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 187 × 19.35 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2S-220A
Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-4P-384
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 204.95 × 68.9 × 20.6 (mm)
Weight: 0.32 (kg)
-
QM2-4S-240 (EOL)
Quad M.2 2280 SATA SSD expansion card
Dimension (L × W × H): 204.95 × 68.9 × 20.6 (mm)
Weight: 0.32 (kg)
-
QXG-10G1T
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 143 × 193 × 52 (mm)
Weight: 0.53 (kg)
-
QXG-10G2T
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 54.5 × 39.5 × 18 (mm)
Weight: 0.29 (kg)
-
QXG-10G2TB (EOL)
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 104.7 × 16.1 × 68.9 (mm)
Weight: 0.28 (kg)
-
QXG-25G2SF-CX6
Dual-port SFP28 25Gb network expansion card; Mellanox ConnectX-6 Lx;low-profile formfactor; PCIe Gen4 x8
Dimension (L × W × H): 120 × 16.5 × 69 (mm)
Weight: 0.15 (kg)
-
QXG-25G2SF-E810
2 port 25GbE(Intel E810-XXVAM2) Network Interface Cards (NIC)
Dimension (L × W × H): 119.3 × 68.9 × 18.1 (mm)
Weight: 0.23 (kg)
-
QXG-2G1T-I225
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 67.3 × 68.9 × 25.2 (mm)
Weight: 0.19 (kg)
-
QXG-2G2T-I225
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 81.3 × 68.9 × 25.2 (mm)
Weight: 0.23 (kg)
-
QXG-2G4T-I225
Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 104.6 × 68.9 × 24.1 (mm)
Weight: 0.24 (kg)
-
QXG-5G1T-111C
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G2T-111C
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G4T-111C
QNAP Quad port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 4;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.23 (kg)
-
QXP-10G2U3A
Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 89.6 × 68.9 × 14 (mm)
Weight: 0.09 (kg)
-
QXP-16G2FC
QNAP 2-port 16Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 16G transceivers
Dimension (L × W × H): 190 × 143 × 50 (mm)
Weight: 0.40 (kg)
-
QXP-32G2FC
QNAP 2-port 32Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 32G optical transceivers
Dimension (L × W × H): 190 × 143 × 50 (mm)
Weight: 0.40 (kg)
