TS-h1065eU
2U short-depth NAS equipped with advanced E1.S/M.2 2280 PCIe NVMe slots and expandable with 10GbE connectivity
TS-h1065eU is designed for small and medium-sized businesses. Its 2U short-depth rackmount design makes it ideal for deployment in space-constrained environments. TS-h1065eU is powered by an Intel® quad-core processor, delivering 8 × 3.5-inch SATA drive bays, two highly expandable E1.S/M.2 2280 PCIe NVMe slots—all within a compact 30 cm (12-inch) chassis. This combination of features is unmatched by competitors, making it a high-performance and highly efficient NAS solution for multitasking workloads.
Flexible E1.S/M.2 2280 slots
Two built-in E1.S/M.2 2280 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Built-in QuTS hero operating system
Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.
Dual 2.5GbE as standard
Accelerate data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
PCIe slot
Supports 10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
Long-term supply
TS-h1065eU will be available and supported by QNAP for an extended period, up to 2031.
QuTS hero 操作系统
荣获 2026 MSP Today 年度产品奖

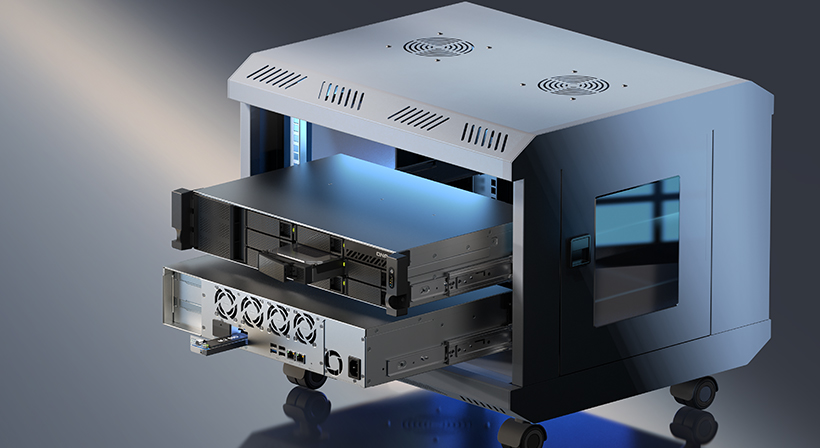

2U short-depth design for flexible deployment
TS-h1065eU has a short chassis depth of only 12 inches (297mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
High-performance Intel® quad-core processor
High-performance Intel® quad-core processor
-
Memory
Built-in DDR5 non-ECC RAM (Supports In-Band ECC); upgradable to 16GB (1 x 16GB)
-
AES-NI Encryption Engine
AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data
-
In-Band ECC
Enhances system security and data reliability
-
2 x 2.5GbE SMB sequential throughput (1M)
Read 588 MB/sWrite 591 MB/s -
2 x 10GbE SMB sequential throughput (1M)
Read 1528 MB/sWrite 1507 MB/s
| 2 x 2.5GbE SMB sequential throughput (1M) |
Read
588
MB/s
|
Write
591
MB/s
|
|---|---|---|
| 2 x 10GbE SMB sequential throughput (1M) |
Read
1528
MB/s
|
Write
1507
MB/s
|
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h1065eU with QXG-10G2TB
OS: QTS 5.2.6.3209
Volume type : 8 x Samsung 870 EVO 1TB SATA SSD , RAID 5, thick volume
Client PC : Windows Server 2019 Standard, Intel i7-6700 3.4GHz, 64GB RAM, LAN-10G2T-X550
IOmeter : RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding

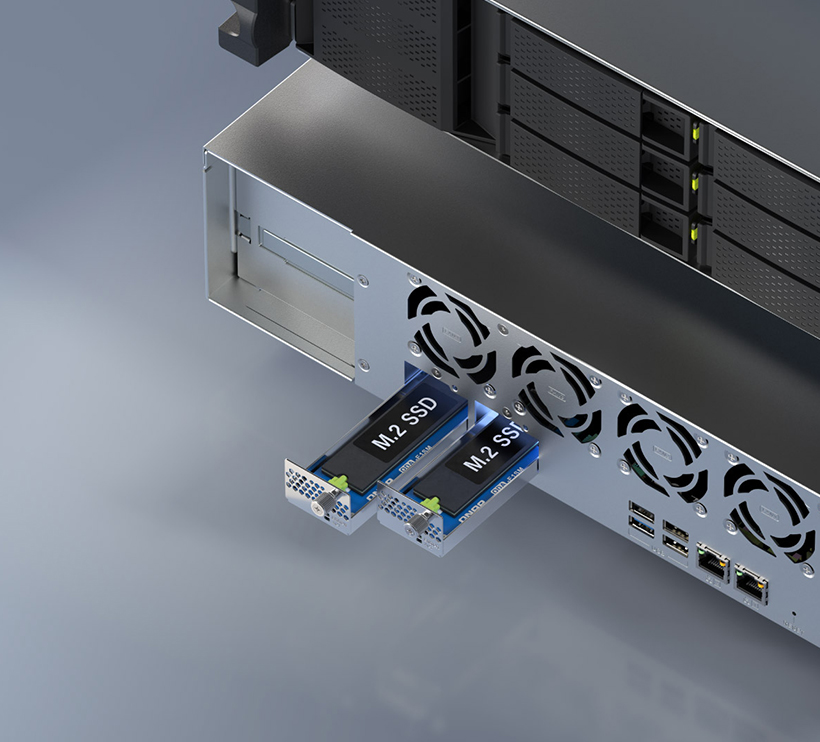

Powerful expansion with E1.S/M.2 2280 PCIe NVMe slots
TS-h1065eU comes with three E1.S/M.2 2280 PCIe NVMe slots that offer unparalleled NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h1065eU to support high-speed 10GbE networking and pair it with M.2 SSDs.
-
Enable SSD caching
Install E1.S/M.2 2280 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
-
Create SSD system drive
Use the E1.S/M.2 2280 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
-
Upgrade to 10GbE
Install the QXG-ES10G1T 10GbE network module for faster network connectivity.
-
Configure SSD system drive
Use an E1.S/M.2 2280 PCIe NVMe SSD storage pool as the QuTS hero system drive to significantly enhance application metadata management and database performance, delivering improved overall system responsiveness.
- HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer.
- With the QDA-E1SM2 (pre-installed) adapter, it supports M.2 NVMe SSDs, providing a hot-swappable solution.
- A TRAY-E1S-01 drive tray (sold separately) is required to install 9.5/15mm E1.S SSD.
Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade
In modern business IT, a NAS with only 1GbE is a performance bottleneck. TS-h1065eU comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.
-
Built-in 2.5GbE
TS-h1065eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
-
Upgradable to 10GbE
With the PCIe slot and E1.S/M.2 2280 PCIe NVMe slots, a 10GbE network module can be easily installed
-
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking.

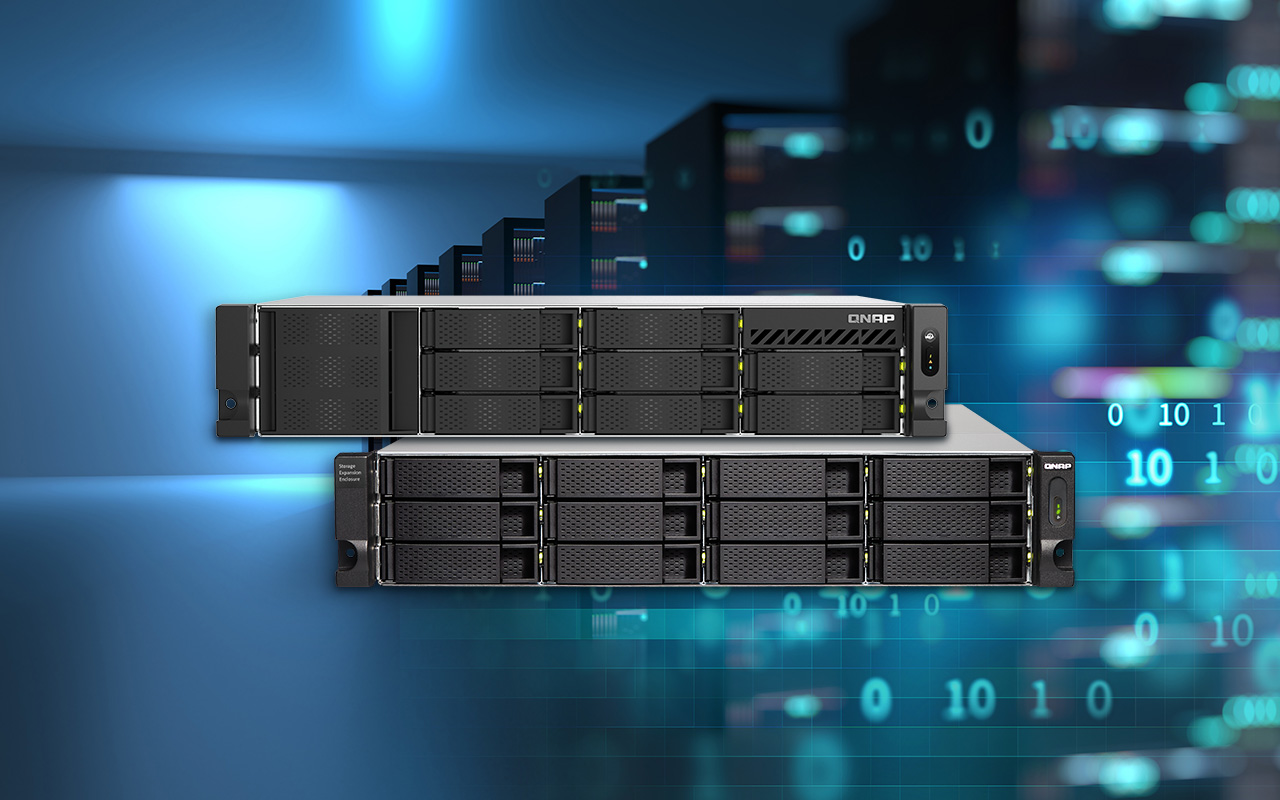

Future-proof your storage with JBOD scalability
As file volumes and storage needs grow, the TS-h1065eU can connect up to one QNAP 12-bay TL-R1200C-RP JBOD expansion units, adding up to 12 additional hard drives and providing exceptional storage capacity.
采用 QuTS hero 操作系统
专为企业所打造的 QuTS hero 操作系统采用高可靠 ZFS 文件系统，为关键数据存储提供强悍数据安全与系统稳定，更拥有专注于提升 SSD 性能与寿命的先进技术，满足企业对于高性能与可靠度的严苛要求。探索 QuTS hero 操作系统了解 QuTS hero 最新功能

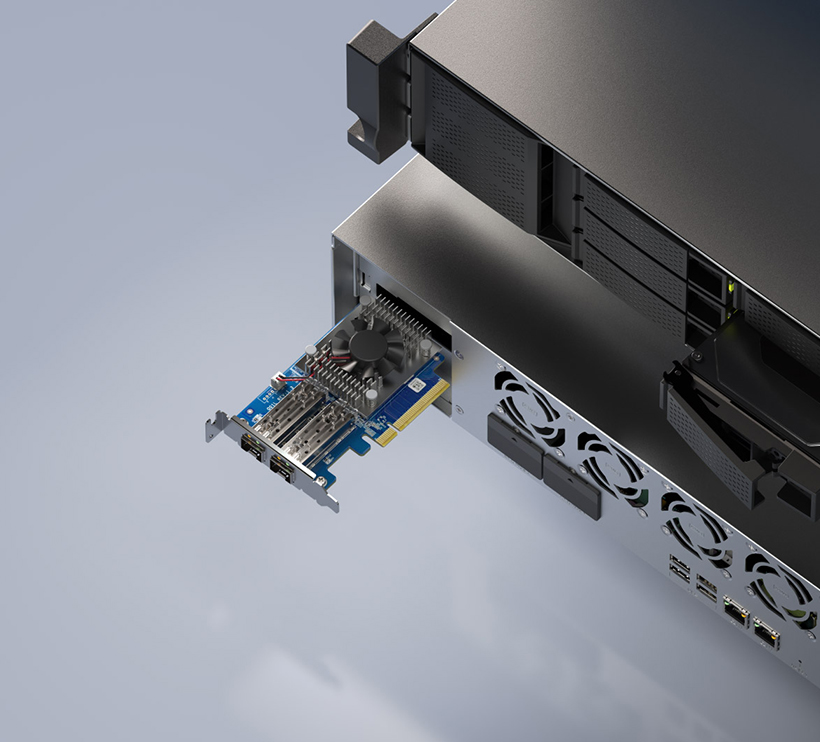

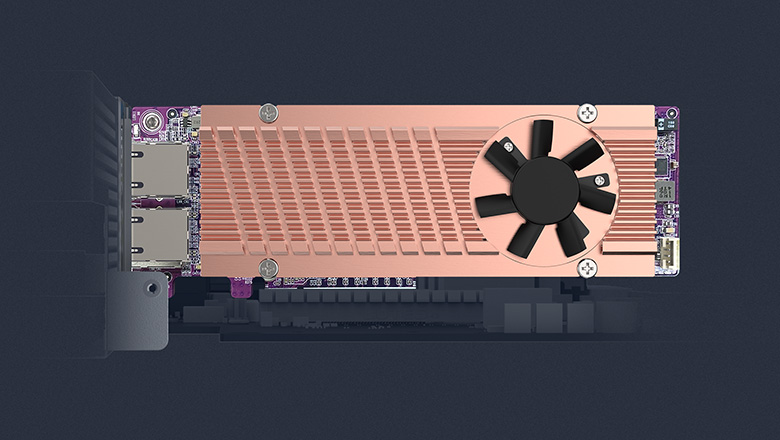

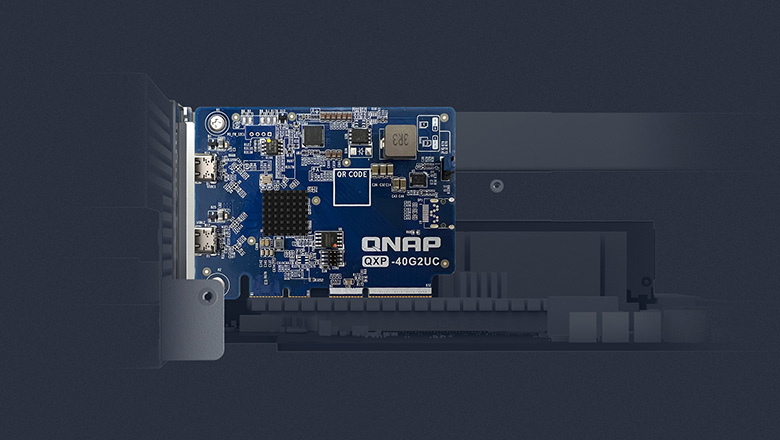

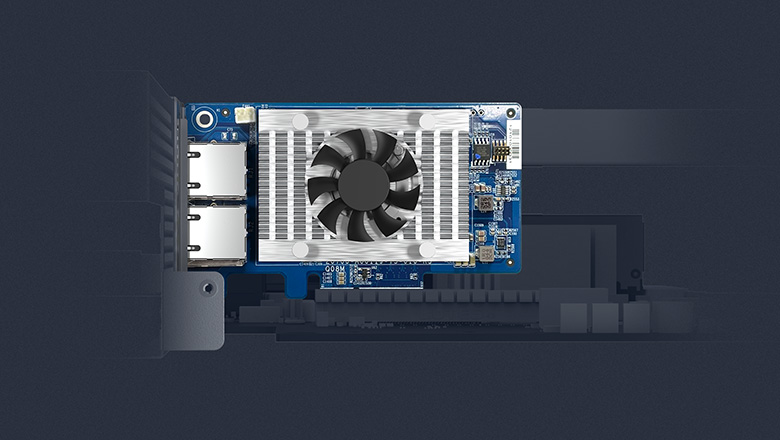

Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. TS-h1065eU has one PCIe slot that supports various expansion cards for expanding application potential.
多方位的备份解决方案
TS-h1065eU 支持多种备份应用程序，满足企业所有的备份需求。了解全部备份方案
-
NAS / 文件服务器
支持各式服务器协议，包括 Rsync、FTP 及 CIFS/SMB。
-
云端
备份 NAS 数据至主流云服务，或 QNAP 打造的 myQNAPcloud One 云端空间。
-
Mac® 计算机
设置 QNAP NAS 作为 Time Machine 备份目的地。
-
Google™ Workspace/Microsoft 365®
通过 QNAP 的 HDP for SaaS 备份、还原并管理多个 Google™ Workspace 及 Microsoft 365® 服务的上万个账号。
-
WordPress
备份、还原或迁移你的 WordPress 网站，也可利用 QNAP NAS 架设网站。了解更多
二次备份或还原
企业可通过单一接口执行二次备份、异地备份或还原，使灾难复原更快、简单且更效率。探索更多 >
-
NAS 及文件服务器
使用单一接口设置并执行备份、异地备份及还原任务。
-
云端
支持绝伦备份技术，让您省时、省力、省空间。
-
myQNAPcloud One
QNAP 自有的云端空间仅收取存储空间费用，并不额外收取数据传输费用。
零时差同步，跨团队也能轻松协作
无论身在办公室还是外出工作，团队成员都可以在笔电、手机上存取同步于 TS-h1065eU 中的最新文件，多人协作更有效率。启用版本控制功能，当文件被修改时保留各个版本，让文件管控、追踪、还原更容易。
受信赖的虚拟化存储方案
运行虚拟机与容器
无须额外购买昂贵授权，在 TS-h1065eU 上执行多个操作系统虚拟机，弹性部署多租户环境与应用程序，提升管理效率并减少硬件成本支出。
-
虚拟机高可用性
虚拟机动态迁移 (Live Migration) 与高可用性 (High Availability; HA)，可确保您的虚拟机稳定运行，并实现更短停机时间。
Surveillance NAS 企业监控解决方案
Surveillance NAS 是一款易于部署且具备高性价比的智能监控平台，集成了 AI 分析、视频备份与容错、集中管理（CMS）以及监控云服务，满足多种部署场景下的专业监控需求。单台 NAS 可支持多达 1,024 路通道，采用基于文件的写入技术提升处理性能，满足多通道、大容量及长时间录制的需求。了解更多 QVR 监控 NAS 解决方案
-
架构简单
整合「录像存储设备」与「影像管理软件」，一机提供录像、分析与管理，提升部署与维护效率。
-
相容 ONVIF® 摄像机
广泛支持 200+ 摄像机品牌，兼容 8000+ 支摄像机，并且支持 ONVIF® 标准。
-
PoE 交换机方案
您可一站购齐专为监控应用设计的 QNAP PoE 交换机，连接 IP 摄像机 及 TS-h1065eU NAS，简化网络与供电布线。
-
AI 智慧监控
Surveillance NAS 可独立运行 AI 影像识别、分析与搜索功能，节省了采购单价昂贵 AI 摄像机的可观费用。
-
灵活的存储扩展和安全的视频备份
所需的视频保留时间越长，对存储容量的需求也越大。您可以将 QNAP JBOD 扩展机箱连接至 TS-h1065eU，或将监控录像备份到 QVR Recording Vault 备份服务器或 myQNAPcloud Surveillance。
企业面临的监控挑战，让 QNAP 帮您解决
Use AI-powered drive failure prediction to safeguard your data
-
Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.
选购配件
-
QM2-2P-244A
Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 170.5 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
-
QM2-2P-344A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P-384A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P10G1TB
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 152.65 × 18.9 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P2G2T
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 152.65 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
-
QM2-2S-220A
Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-4P-384
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 204.95 × 68.9 × 20.6 (mm)
Weight: 0.32 (kg)
-
QM2-4S-240 (EOL)
Quad M.2 2280 SATA SSD expansion card
Dimension (L × W × H): 204.95 × 68.9 × 20.6 (mm)
Weight: 0.32 (kg)
-
PWR-PSU-250W-DT02
250W Delta power supply
Dimension (L × W × H): 220 × 177 × 56 (mm)
Weight: 0.76 (kg)
For safety information and operating instructions, please refer to the documentation of your original QNAP product.
-
SCR-HDD25A-96
Screw pack for 2.5" HDD / SSD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.01 (kg)
-
SCR-HDD35B-96
Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.03 (kg)
-
RAIL-B02
new rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc
Dimension (L × W × H): 738 × 100 × 70 (mm)
Weight: 2.48 (kg)
This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click https://qnap.to/rail-b02.
-
RAIL-S02
Rail Kit, support rack-post 8"~13" (203.2mm~330.2mm) depth cabinet, for 1U/2U/3U short-depth rackmount QNAP model
Dimension (L × W × H): 580 × 100 × 70 (mm)
Weight: 1.68 (kg)
-
QXG-10G1T
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 143 × 193 × 52 (mm)
Weight: 0.53 (kg)
-
QXG-10G2T
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 54.5 × 39.5 × 18 (mm)
Weight: 0.24 (kg)
-
QXG-10G2TB (EOL)
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 104.7 × 16.1 × 68.9 (mm)
Weight: 0.28 (kg)
-
QXG-2G1T-I225
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 67.3 × 68.9 × 25.2 (mm)
Weight: 0.19 (kg)
-
QXG-2G2T-I225
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 81.3 × 68.9 × 25.2 (mm)
Weight: 0.23 (kg)
-
QXG-2G4T-I225
Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 104.6 × 68.9 × 24.1 (mm)
Weight: 0.24 (kg)
-
QXG-5G1T-111C
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G2T-111C (EOL)
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G4T-111C (EOL)
QNAP Quad port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 4;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.23 (kg)
-
QXP-10G2U3A
Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 89.6 × 68.9 × 14 (mm)
Weight: 0.09 (kg)
-
RAM-8GDR5K0-SO-5600
8GB DDR5 RAM, 5600 MHz, SODIMM
-
CAB-PWR20M-C1314
Power Cord, 2M, C13-C14, 250V, 10A, IEC
Dimension (L × W × H): 180 × 29 × 21 (mm)
Weight: 0.19 (kg)
