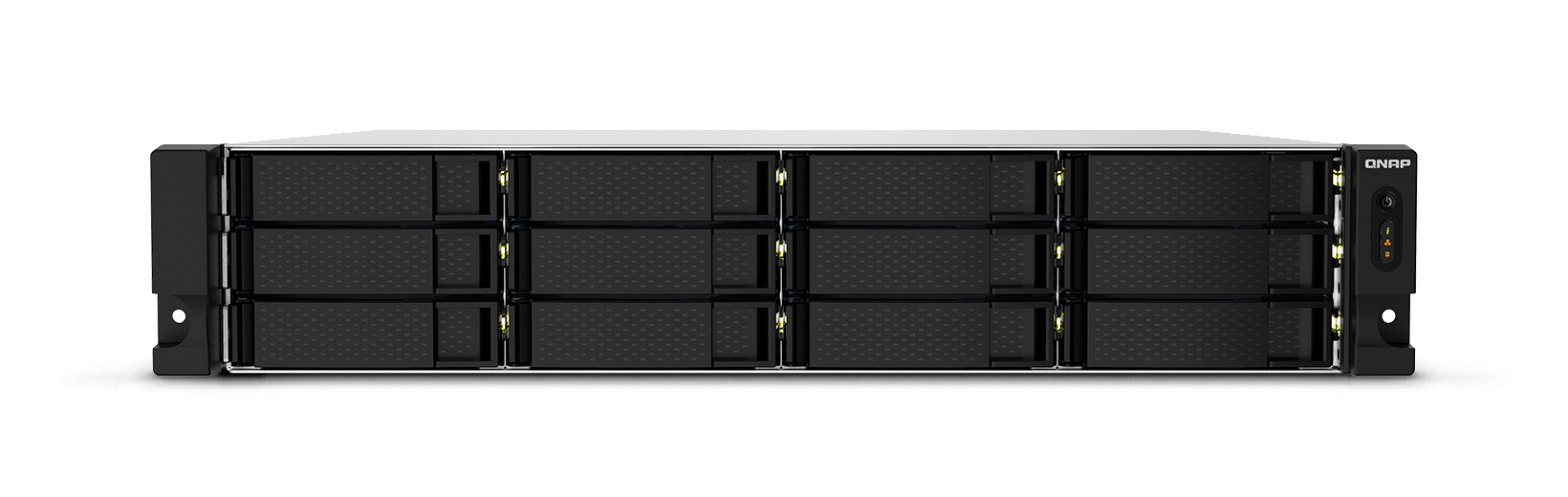

TS-1232PXU-RP
双电源四核心 1.7GHz 机架式 NAS，配备双 10GbE SFP+ 与双 2.5GbE 网络端口，专为 SMB IT 环境打造
TS-1232PXU-RP 机架型 NAS专为中小企业 IT 环境打造，具备 10GbE SFP+ 与 2.5GbE 网络端口，高网络带宽让工作团队档案存取与分享更顺畅；内建 PCIe Gen2 ×2 插槽扩充能力，可搭配 QNAP 扩充卡配件添增网络端口或 SSD 快取能力。TS-1232PXU-RP 提供专业的文件备份与同步机制、安全的快照保护以及 Google™ Workspace 与 Microsoft 365® 企业账户备份服务，必要时实时复原。搭配云网关服务，建立新型态 NAS 混合云存储架构。TS-1232PXU-RP 具备双电源供应器提供备援，确保重要服务 7/24 执行不中断。
1
2 个 10GbE SFP+ 与 2 个2.5GbE RJ45 网络传输，加速跨装置间的档案分享。
2
HBS (Hybrid Backup Sync) 将数据备份、同步至其他 NAS、远程服务器或云端空间，建立完善的备份与灾难复原方案。
3
Boxafe 备份 Google™ Workspace 与 Microsoft 365® 云端空间的档案、邮件、行事历及联络人数据至 NAS 中妥善保存。
4
快照完整记录系统状态及数据，当意外发生时，可透过快照将系统迅速还原至正常状态。
5
可安装 QM2 卡为 NAS 再扩充 M.2 SSD 存储快取、网络扩充卡或 USB 扩充卡，拓展 NAS 应用潜能。
6
连接 QNAP TR RAID 磁盘阵列外接盒或 TL JBOD存储扩充设备，轻松扩充可用存储空间。
支持效率更高的 SMB 签章算法 AES-128-GMAC
SMB 签章 (也称为安全性签章) 是 SMB 通讯协议中的安全性机制。针对高资安需求的商务应用，启用签章功能可在文件传输过程确保数据安全，防止中间人攻击，但也会因此影响 SMB 传输性能。QTS 5.1.0 支持新的 AES-128-GMAC 签署加速 (仅适用于 Windows 11® 和 Windows Server 2022® 客户端)，大幅提升 SMB 3.1.1 传输协议中封包签章的效率，CPU 使用率也更好，提供最佳的性能和保护组合。
安装 SSD，扩大化 NAS 运作效能
随着 SSD 价格日益亲民，适当地配置 SSD 可提升 NAS 效能与成本效益。TS-1232PXU-RP 支持 SSD 快取技术、Qtier™ 自动分层存储，以及 SSD 外挂预留空间，让您的 TS-1232PXU-RP 存储效能、空间配置与 IT 成本达到更佳的平衡。
兼顾效能与空间
延长使用寿命，精省预算
找文件、搜图片、自动归档，轻而易举
TS-1232PXU-RP 让您享有便利的档案管理体验。您可使用 Qsirch 全文搜索引擎查找档案、QuMagie 智慧相簿分类照片，并透过 Qfiling 自动化档案归档。
完善备份 Google™ Workspace 及 Microsoft 365® 企业账户
越来越多企业采用 Google™ Workspace 及 Microsoft 365® 等 SaaS (Software as a Service) 服务。然而便利如 SaaS，它同时也有数据遗失的风险与数据复原的限制。QNAP Boxafe 可将您的 Google™ Workspace 与 Microsoft 365® 云端空间的档案、邮件、行事历及联络人数据备份至 TS-1232PXU-RP 中妥善保存，打造全面向企业备份方案，轻松把关您的云端数据。
知道更多：Boxafe SaaS 备份
混合云网关加持，存取云端档案如本地般快速
TS-1232PXU-RP整合 NAS 与主流云端服务，搭配 QNAP 云网关让存取云端数据就像在区网内操作般顺畅、快速，无缝地使用云端空间进行存盘、备份和灾难复原，带给您轻便、灵活的新型态 NAS 混合云体验。
-
HybridMount 档案型网关
无需购买大容量硬盘也能享有轻便、灵活的云端存储空间。即使档案在云端，也能享受 QTS 提供的多媒体服务和档案管理服务。适合文件服务器在线协作和档案层级数据分析等应用。
知道更多：HybridMount
-
VJBOD Cloud 区块型网关
将 NAS 数据备份至多个云端对象存储空间。区块层级传输可将随机数据和大型文件以个别区块方式上传云端，而且仅传输变动区块，适合数据库、虚拟机磁盘区、录像图像文件等企业大文件的传输应用。
知道更多：VJBOD Cloud

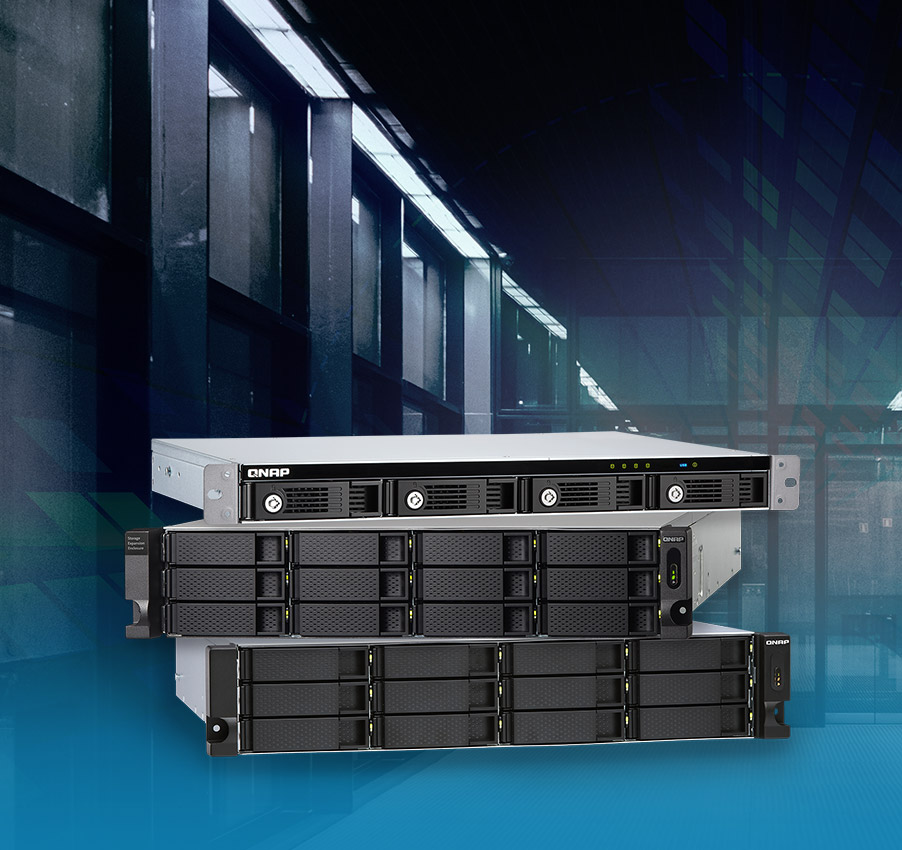

存储空间随需扩充，经济实惠
企业资料与日俱增也无需担心。TS-1232PXU-RP 可连接 QNAP TR RAID 磁盘阵列外接盒或 TL JBOD 存储扩充设备，用精省的方式灵活扩充存储空间。透过 QNAP 的虚拟 JBOD (VJBOD) 技术，TS-1232PXU-RP 中的闲置存储空间还能够用来扩充其他 QNAP NAS 的存储空间。
知道更多：存储扩充设备、存储扩充兼容性、VJBOD 网络虚拟存储扩充柜
PCIe 弹性扩充，满足多元存储应用
TS-1232PXU-RP 提供一个 PCIe Gen 2 ×2 插槽，可依需求弹性配置多样扩充卡。

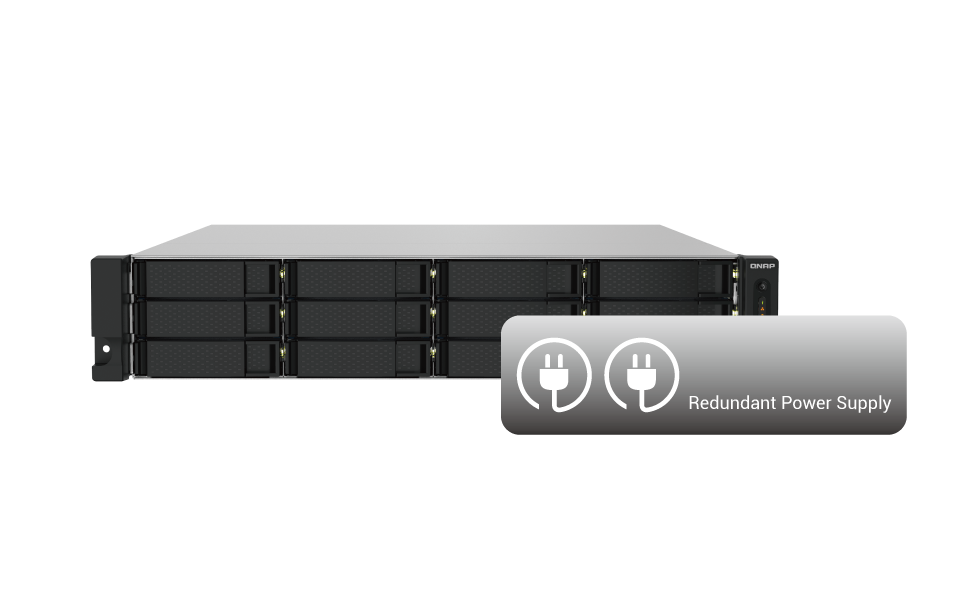

双电源备援，保障服务不中断
TS-1232PXU-RP 配有备援电源供应器，当主电源异常时可立即备援，确保服务稳定不中断。结合双 10GbE SFP+ 和双 2.5GbE 网络端口使用，协助企业服务全年不中断的运作，打造高可靠存储方案。
延长质保，享高达 5 年保障
TS-1232PXU-RP 享有 3 年的免费产品质保。如果需要更长的质保期，您可以购买 QNAP 延长质保服务方案，享有高达 5 年的产品质保期限与保障。
知道更多：QNAP 质保服务
其他人也看了
选购配件
-
QM2-2P-244A
Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 170.5 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
-
QM2-2P-344 (EOL)
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P-344A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P-384 (EOL)
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P-384A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P10G1TB
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 152.65 × 18.9 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P2G2T
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 152.65 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
-
QM2-2S-220A
Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
LAN-10G1T-U
QNAP single-port 10 Gigabit 10GBASE-T network expansion card
Dimension (L × W × H): 113 × 184 × 52 (mm)
Weight: 0.26 (kg)
-
LAN-10G2T-X550 (EOL)
QNAP Dual-port 10 Gigabit Network Expansion Card for rackmount and tower models (10GBASE-T interface)
Dimension (L × W × H): 60 × 105 × 260 (mm)
Weight: 0.42 (kg)
-
QXG-10G1T
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 143 × 193 × 52 (mm)
Weight: 0.17 (kg)
-
QXG-10G2T
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 54.5 × 39.5 × 18 (mm)
Weight: 0.29 (kg)
-
QXG-10G2T-107 (EOL)
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen2 x4
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.24 (kg)
-
QXG-10G2TB (EOL)
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 104.7 × 16.1 × 68.9 (mm)
Weight: 0.28 (kg)
-
QXG-2G1T-I225
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 67.3 × 68.9 × 25.2 (mm)
Weight: 0.19 (kg)
-
QXG-2G2T-I225
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 81.3 × 68.9 × 25.2 (mm)
Weight: 0.23 (kg)
-
QXG-5G2T-111C
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
PWR-CG-DT04-001
Redundant Power Cage for 250W, Delta
Dimension (L × W × H): 384 × 282 × 78 (mm)
Weight: 1.29 (kg)
For users of the TS-464U-RP, TS-832PXU-RP, TS-1232PXU-RP, or TS-432PXU-RP, please confirm the PSU model in your NAS. If it is the DPS-250AB-81 A (QNAP SKU: SP-469U-S-PSU), please purchase the PWR-SET-DT04, which includes two new PSUs and one new cage required for replacement, as the new PWR-PSU-250W-DT04 is not compatible with the SP-469U-S-PSU and must be installed with the new cage for proper operation.
-
PWR-PSU-250W-DT04
250W power supply unit, Delta
Dimension (L × W × H): 200 × 150 × 85 (mm)
Weight: 1.12 (kg)
For users of the TS-464U-RP, TS-832PXU-RP, TS-1232PXU-RP, or TS-432PXU-RP, please confirm the PSU model in your NAS. If it is the DPS-250AB-81 A (QNAP SKU: SP-469U-S-PSU), please purchase the PWR-SET-DT04, which includes two new PSUs and one new cage required for replacement, as the new PWR-PSU-250W-DT04 is not compatible with the SP-469U-S-PSU and must be installed with the new cage for proper operation.
-
PWR-SET-DT04
Redundant Power Cage for 250W, Delta x1, 250W power supply unit, Delta x2
Dimension (L × W × H): 384 × 282 × 78 (mm)
Weight: 2.69 (kg)
For users of the TS-464U-RP, TS-832PXU-RP, TS-1232PXU-RP, or TS-432PXU-RP, please confirm the PSU model in your NAS. If it is the DPS-250AB-81 A (QNAP SKU: SP-469U-S-PSU), please purchase the PWR-SET-DT04, which includes two new PSUs and one new cage required for replacement, as the new PWR-PSU-250W-DT04 is not compatible with the SP-469U-S-PSU and must be installed with the new cage for proper operation.
-
SCR-HDD25A-96
Screw pack for 2.5" HDD / SSD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.01 (kg)
-
SCR-HDD35B-96
Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.03 (kg)
-
SP-469U-S-PSU (EOL)
250W single power supply for select rackmount NAS/NVR. Redundant power supply should be equipped with 2 units
Dimension (L × W × H): 100 × 305 × 100 (mm)
Weight: 0.90 (kg)
For safety information and operating instructions, please refer to the documentation of your original QNAP product.
-
SP-TS-TRAY-WOLOCK
Black HDD tray with black flat head machine screw x6 for 2.5" HDD & silver flat head machine screw x8 for 3.5" HDD
Dimension (L × W × H): 185 × 140 × 40 (mm)
Weight: 0.20 (kg)
-
RAIL-B02
new rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc
Dimension (L × W × H): 738 × 100 × 70 (mm)
Weight: 2.48 (kg)
This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click https://qnap.to/rail-b02.
-
QXP-10G2U3A
Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 89.6 × 68.9 × 14 (mm)
Weight: 0.09 (kg)
-
QXP-W6-AX200 (EOL)
QNAP WiFi 6 (Intel AX200) PCIe wireless card w/ antenna & brackets for NAS; Giga-byte GC-WBAX200 QNAP Edition
Dimension (L × W × H): 55 × 150 × 215 (mm)
Weight: 0.32 (kg)
-
USB-U31A2P01 (EOL)
USB 3.2 Gen 2 10Gbps Type-A Dual-port PCIe Card
Dimension (L × W × H): 113 × 185 × 52 (mm)
Weight: 0.17 (kg)
USB cabe is not included.
-
TRX-10GITSFPP-SR
Optical Transceiver 10GbE SFP+ 850nm SR up to 300m industrial-temperature(-40~85°C )
Dimension (L × W × H): 59.8 × 14 × 12 (mm)
Weight: 0.08 (kg)
-
TRX-10GSFP-SR-MLX
Mellanox MFM1T02A-SR SFP+ Optical Module for 10GBASE-SR
Dimension (L × W × H): 120 × 195 × 35 (mm)
Weight: 0.10 (kg)
-
CAB-DAC15M-SFPP
SFP+ 10GbE twinaxial direct attach cable, 1.5M
Dimension (L × W × H): 10 × 240 × 295 (mm)
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
-
CAB-DAC30M-SFPP
SFP+ 10GbE twinaxial direct attach cable, 3.0M
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
-
CAB-DAC50M-SFPP
SFP+ 10GbE twinaxial direct attach cable, 5.0M
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
-
RAM-16GDR4K1-UD-3200
16GB DDR4 RAM, 3200 MHz, UDIMM, K1 version
-
RAM-4GDR4A0-UD-2400 (EOL)
DDR type: DDR4(288PIN)
Capacity: 4GB
Spec: 512M X 16
Frequency: DDR4-2400
Form(PIN): 288PIN
Power Supply: 1.2V
Dram Organization: 512M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
-
RAM-4GDR4A0-UD-3200
4GB DDR4 RAM, 3200 MHz, UDIMM
-
RAM-8GDR4A0-UD-2400
DDR type: DDR4(288PIN)
Capacity: 8GB
Spec: 1024M X 8
Frequency: DDR4-2400
Form(PIN): 288PIN
Power Supply: 1.2V
Dram Organization: 1024M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
-
RAM-8GDR4K0-UD-3200
8GB DDR4 RAM, 3200 MHz, UDIMM, K0 version
