Describe the correspondence between the QES Ethernet number on the GUI and the ES NAS physical network port.
最后修订日期:
2018-03-05
There are four SFP+ network ports on each controller of the ES1640dc v2, corresponding to the Ethernet number in QES as below: Ethernet 1 (top right) ,Ethernet 2 (bottom right), Ethernet 3 (top left), Ethernet 4 (bottom left). In addition, two 10G BASE-T ports are included with a pre-installed PCIe network card, and the QES Ethernet numbers are Ethernet 5 (top), Ethernet 6 (bottom).

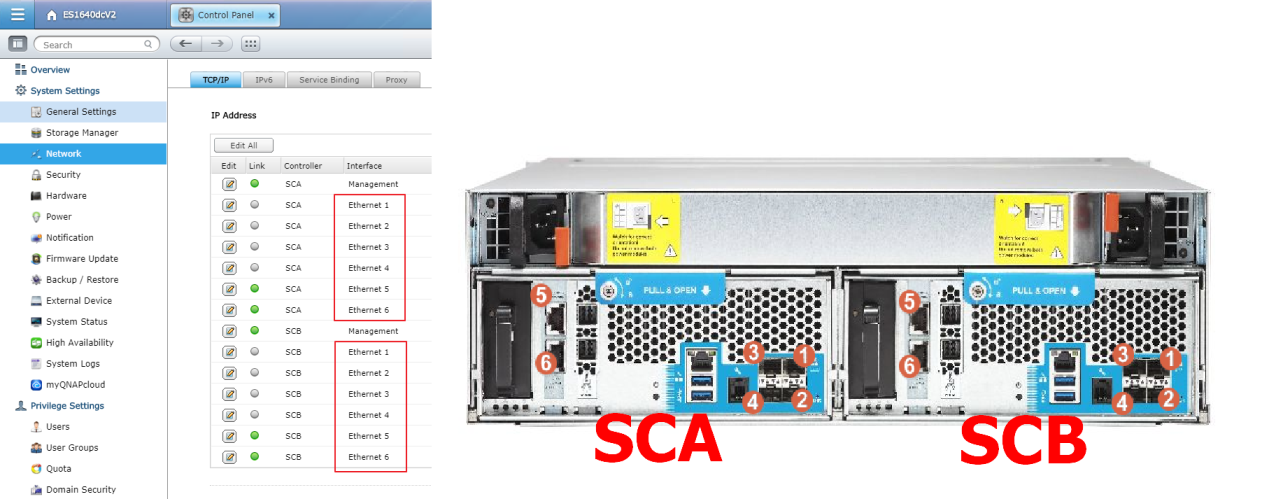

This image displays the physical network ports and the QES Ethernet ports.
