Applicable Products
QMiroPlus-201W
Scenario
I recently bought a QMiroPlus-201W and tried to install it. I was good while the NAS was directly connected to my PC. But when I try to put the NAS on my home network, Qfinder is not able to see the NAS.
Solution
The QMiroPlus-201W is a hybrid router and NAS device. This article describes how to physically install and initialize your QMiroPlus-201W for first-time setup.
1. Before you begin
Make sure you have:
- QMiroPlus-201W device and its power adapter
- At least two Ethernet cables (Cat 5e or above)
- Your ISP internet box/router
- A computer (Windows or macOS)
- Access to your home network
2. Step-by-Step Setup

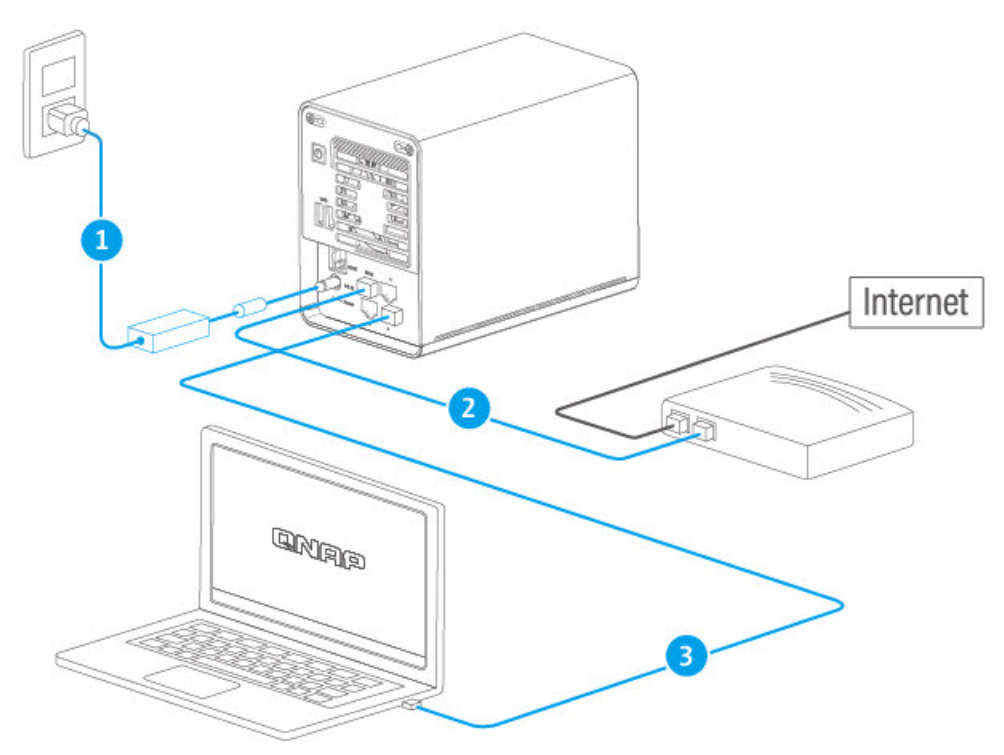

Step 1 - Physical Connections
Connect the QMiroPlus-201W to the power source.
Connect the QMiroPlus-201W WAN port to your Internet router using one Ethernet cable.
Connect the QMiroPlus-201W LAN port to your computer using another Ethernet cable.
Power on the QMiroPlus-201W and wait until the status LED turns solid blue (ready).
Step 2 - Initialize Configuration
Download & install Qfinder Pro from:
https://www.qnap.com/utilities
Open Qfinder Pro and wait for it to detect your QMiroPlus-201W.

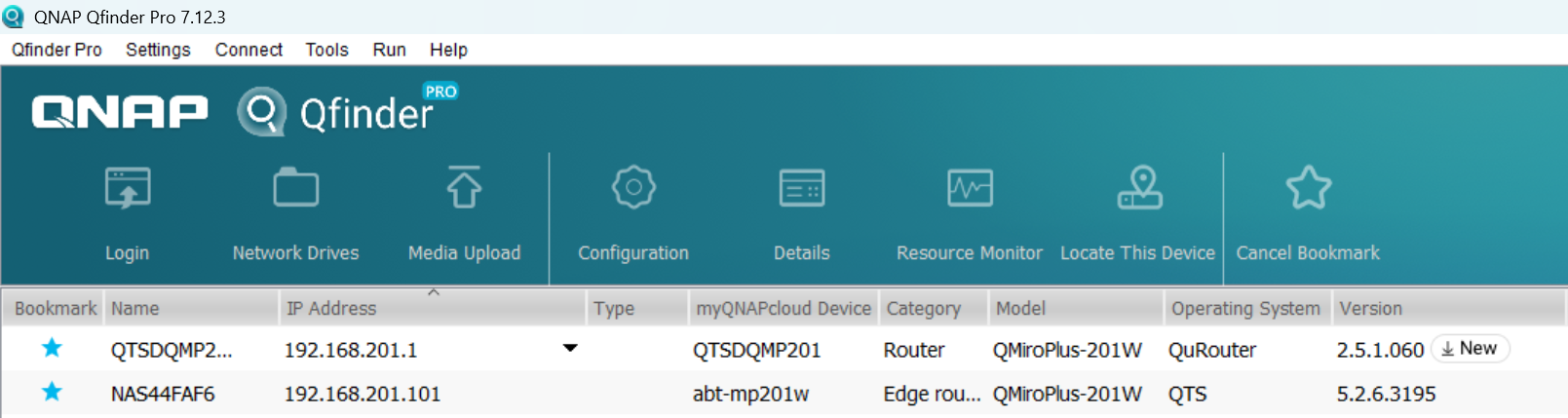

In Qfinder, you should see two entries for your device:
Double-click the NAS entry (QTS) to open its web interface in your browser.
Follow the Smart Installation Guide to set:
Device name
Admin password
Network settings
2.1 Using QMiroPlus-201W as NAS Only
Besides the above standard wired installation (WAN + LAN connection), you can also choose the alternative NAS-only usage (LAN-only, WAN unused)
Lauch QuRouter App on the desktop
Go to Network → WAN and LAN → LAN Settings → DHCP Settings → Choose None to disable DHCP service
Connect the QMiroPlus-201W LAN port to your Internet router.
Do not connect WAN port.
Connect the QMiroPlus-201W LAN port to your netwotk switch or you computer.
Access via Qfinder
3. Troubleshooting: Qfinder Can't Detect the NAS
If Qfinder Pro does not see your QMiroPlus-201W:
Check Cabling
Check Network
Confirm your PC and QMiroPlus-201W are on the same subnet.
If unsure, temporarily connect your PC directly to the QMiroPlus-201W LAN port.
Disable Firewalls Temporarily
Direct IP Access
Log in to your Internet router’s web interface.
Look for the device named QNAP or QMiroPlus-201W in the DHCP client list.
Copy its IP address and paste it into your browser’s address bar.
Further Reading
适用产品
QMiroPlus-201W
场景
我最近购买了 QMiroPlus-201W 并尝试安装。当 NAS 直接连接到我的电脑时，一切正常。但是当我尝试将 NAS 连接到家庭网络时， Qfinder 无法识别 NAS。
解决方案
QMiroPlus-201W 是一款混合路由器和 NAS 设备。本文介绍如何首次安装和初始化您的 QMiroPlus-201W。
1. 开始之前
请确保您拥有：
- QMiroPlus-201W 设备及其电源适配器
- 至少两根以太网线（Cat 5e 或以上）
- 您的 ISP 互联网盒子 / 路由器
- 一台电脑（Windows 或 macOS）
- 访问您的家庭网络
2. 分步设置
步骤 1 - 物理连接
将QMiroPlus-201W连接到电源。
连接 QMiroPlus-201WWAN 端口使用一根以太网线连接到您的互联网路由器。
连接 QMiroPlus-201WLAN 端口使用另一根以太网线连接到您的电脑。
启动 QMiroPlus-201W 并等待状态 LED 变为稳定蓝色（准备就绪）。
步骤 2 - 初始化配置
下载并安装Qfinder Pro，从：
https://www.qnap.com/utilities
打开 Qfinder Pro 并等待其检测到您的 QMiroPlus-201W。
在 Qfinder 中，您应该看到两个设备条目：
双击 NAS 条目（QTS）以在浏览器中打开其网页界面。
按照智能安装指南设置：
2.1 仅用作 NAS 的 QMiroPlus-201W
除了上述标准有线安装（WAN + LAN 连接），您还可以选择仅 NAS 使用（仅 LAN，WAN 未使用）
启动QuRouter桌面上的应用程序
前往网络→WAN 和 LAN→LAN 设置→DHCP 设置→ 选择无以禁用 DHCP 服务
将 QMiroPlus-201WLAN 端口连接到您的互联网路由器。
不要连接WAN 端口。
将 QMiroPlus-201WLAN 端口连接到您的网络交换机或计算机。
通过 Qfinder 访问
3. 故障排除：Qfinder 无法检测到 NAS
如果Qfinder Pro未检测到您的 QMiroPlus-201W：
检查布线
检查网络
暂时禁用防火墙
直接 IP 访问
