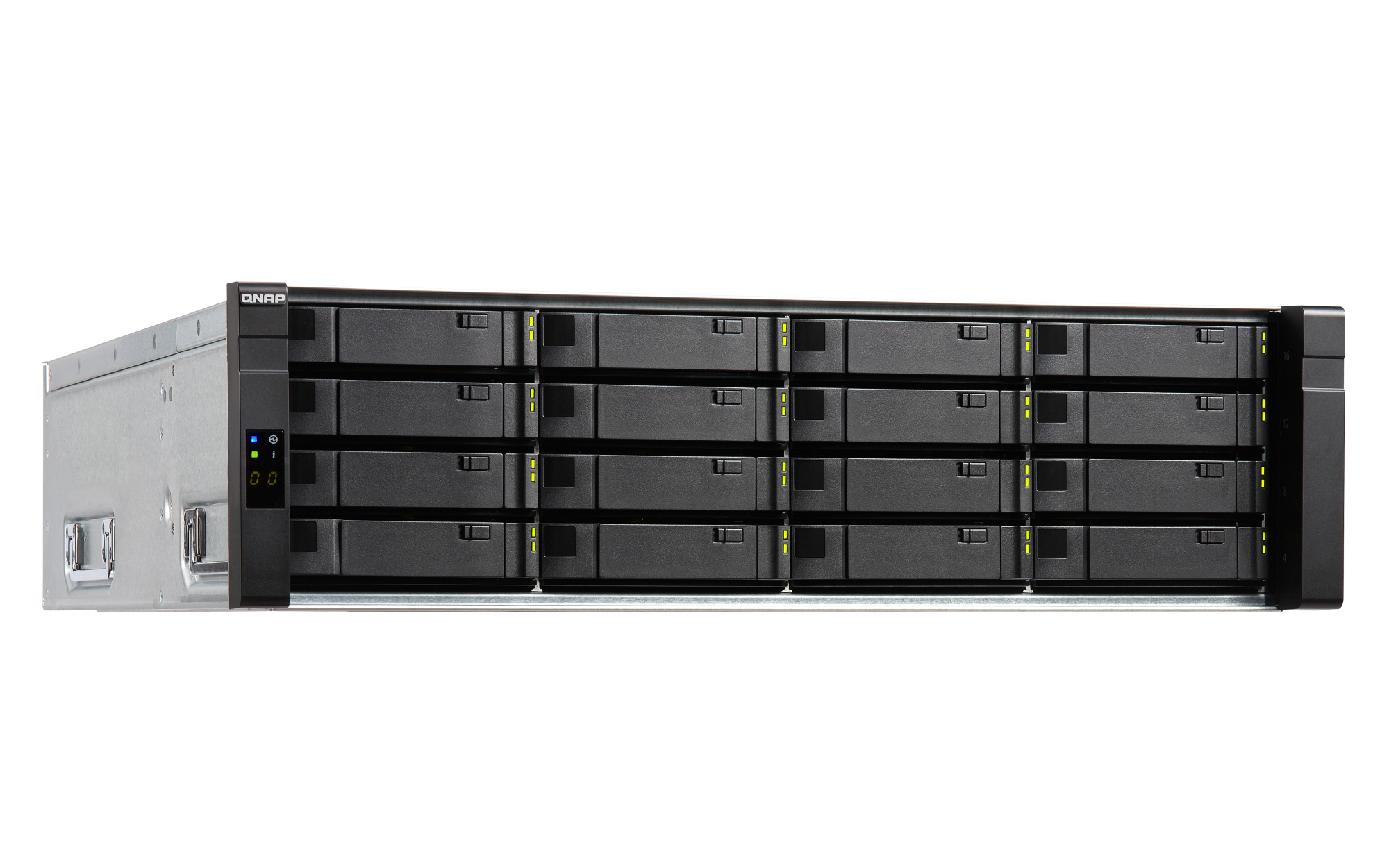

ES1640dc v2 Specification
-
ES1640dc-v2-E5-96G (Legacy)
控制器数量 2 CPU Intel Xeon E5-2400 v2 系列处理器
Intel Xeon 6核处理器 E5-2420 v2（15M 缓存，2.20GHz）CPU 架构 64 位 x86 浮点运算 加密引擎 (AES-NI) 系统内存 每一控制器：48 GB RDIMM DDR3 ECC (3 x 16 GB) 内存插槽 每个控制器：3 个 RDIMM DDR3 每一控制器：32GB 主存储器 + 16GB 写入快取闪存 2 GB 硬盘插槽数 16 x 3.5 吋 SAS 12Gb/s，向下兼容至 SAS 6Gb/s支持硬盘类型 3.5 吋插槽：
3.5 吋 SAS 硬盘
2.5 吋 SAS 硬盘

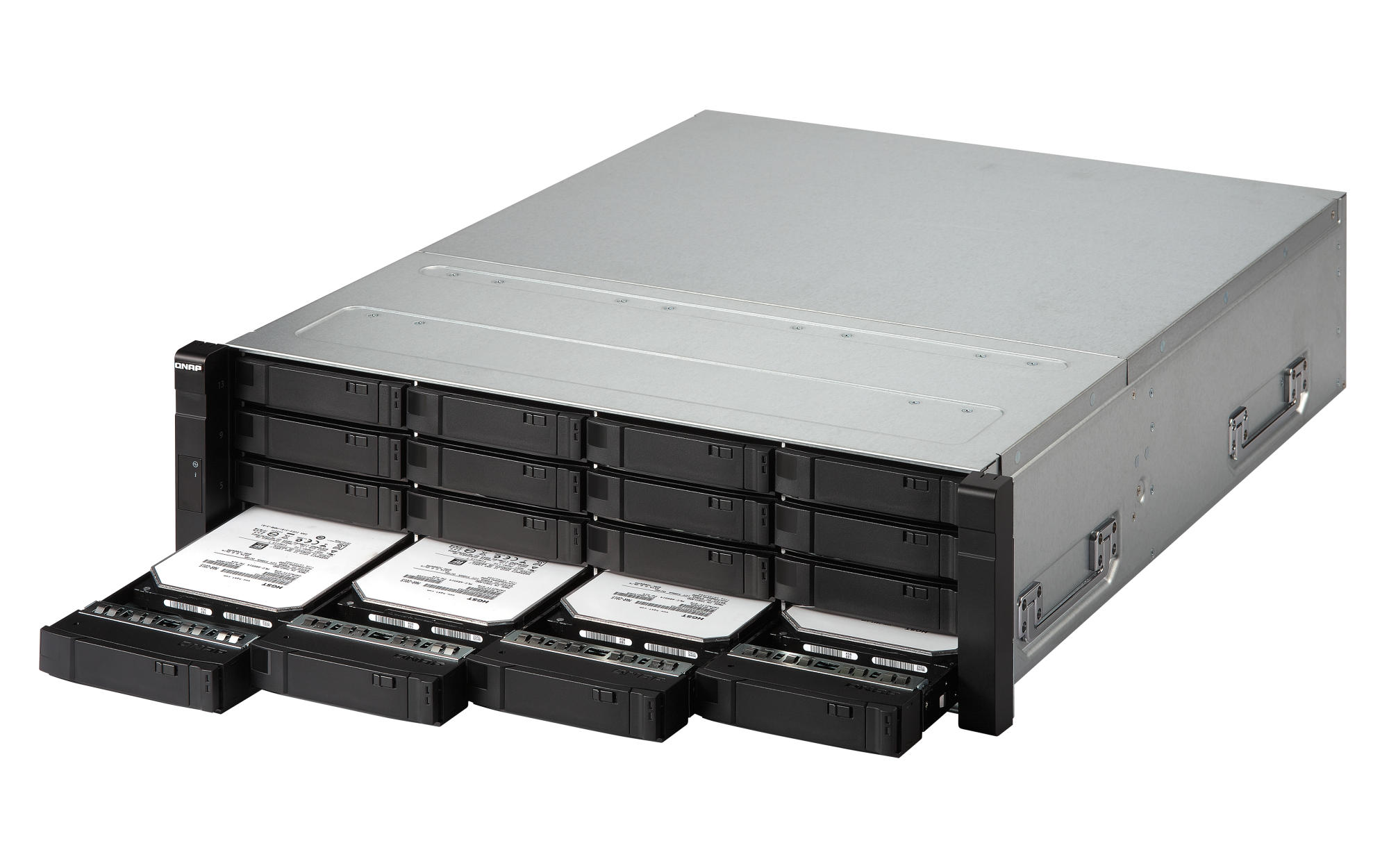

2.5 吋 SAS 固态硬盘热插入支持 SSD 快取加速支持 Copy To Flash (C2F) 快取埠 每个控制器：1 个

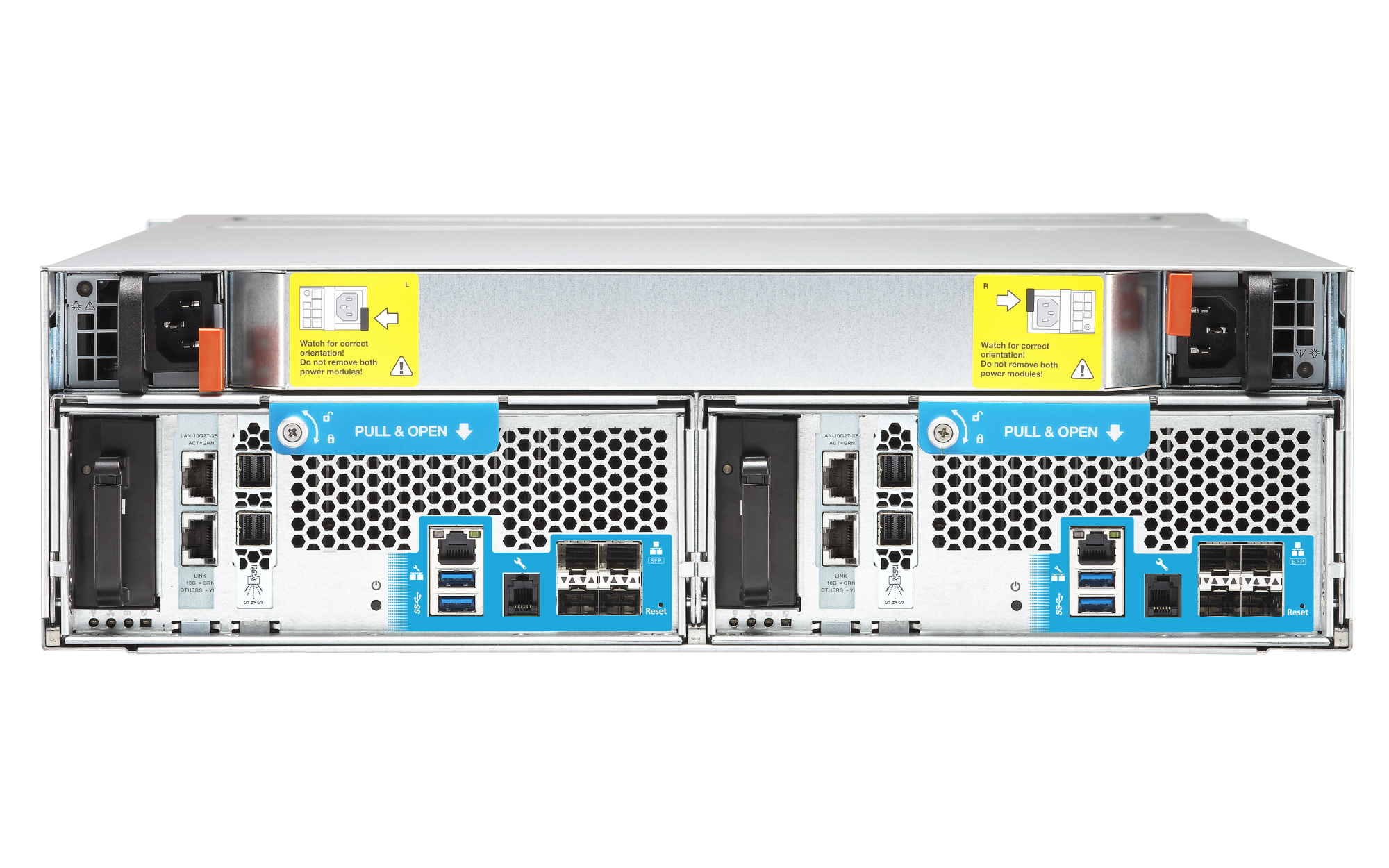

(NVRAM 专用 M.2 2280 固态硬盘，SATA 讯号)Gigabit 以太网络端口 (RJ45) 每个控制器：1 个 (供远程管理) 10 Gigabit 以太网络端口 每一控制器：4 x 10GbE SFP+ (Intel XL710-AM1) 和 2 x 10GBASE-T (LAN-10G2T-X550) 网络唤醒 (WOL) 巨型讯框 PCIe 插槽 PCIe 插槽 x8 (Gen 3 x8)：预载 LAN-10G2T-X550 NIC (2 x 10GbE RJ45 埠)，亦可替换为一个 40GbE NIC
PCIe 插槽 x4 (Gen 2 x4)：预载双埠 Mini-SAS 适配卡USB 3.2 Gen 1 端口 每一控制器：2 个 注：此 USB 端口仅用于工程目的。不支持存储硬盘或 UPS 等外部设备。外型 3U 机架式 LED 指示灯 系统电源 LED (绿色)：开/关
系统状态 (绿色/橘色)：运作中、系统错误、低电源、降级 RAID 模式、内存失败、风扇/电源供应失败、系统/硬盘过热、存储池达到临界值、系统执行接收、电源供应器拔除
LCD 状态显示 (二位数字)：JBOD 联机状态按钮 电源、系统重置 尺寸 (高 x 宽 x 深) 132 × 446.2 × 618 mm 重量 (净重) 26.75 kg 重量 (总重) 36.94 kg 操作温度 0 - 40°C (32°F - 104°F) 存储温度 -20 - 70 °C (-4°F - 158°F) 相对湿度 5-95% RH (不凝结)，湿球：27˚C (80.6˚F) 电源供应器 备援 / 热抽换电源 Vin：90~264VAC；770W 耗电量：运作模式，一般 501.4 W NAS 装满硬盘的状态下所测试。风扇 热抽换风扇模块 (60*60*38mm；16000RPM/12v/2.8A x 3) 系统警示 蜂鸣器 标准保固 5 同时联机 (CIFS) 数目上限-内存上限 10000 安全认证 FCC Class A (限美国)
CE Mark (EN55022 Class A，EN55024)
EN60950
BSMI
VCCI
CB
LVD注意：请仅使用 QNAP 内存模块来保持系统的性能与稳定性。若 NAS 设备有多个内存模块，请使用规格相同的 QNAP 模块，并参考硬件用户手册安装兼容的 QNAP 内存模块。
警告：使用不受支持的模块可能导致性能下降、引发错误或使操作系统无法启动。
QNAP 有权视供货商产品供货情况，更换部分零件或配件。其兼容性与稳定性皆经过相同严格的测试检验，请用户放心使用。
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
设计及规格若有变更，恕不另行通知。产品图仅供示意，实际产品可能有所不同。
由于屏幕显示误差，产品实际颜色亦可能和网站所示有所不同。
-
Operating System QES 2.2.1
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
Storage Pool Shared Folder Type Thick, Thin
JBOD Expansion LUN Type Thick, Thin
Storage QoS Storage Management - NVRAM write cache (BBU-protected)
- Scheduled Backup Battery Unit (BBU) learning
- Pool scrub for data verification
- Share folder quota management
RAID Type RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, triple Mirror
RAID Group To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Hot Spare Global, Local
End-to-End data integrity Silent error detection and self-healing Internal drive ZFS
Disk S.M.A.R.T. Scan Disk S.M.A.R.T. Data Migration SSD Trim SSD Life Estimation Shared Folder Snapshot LUN Snapshot Backup Station - Remote replication server over Rsync
- Remote replication server over SnapSync
- Real-time or scheduled replication over SnapSync
- Compression and Dedupication over SnapSync
File Server - Shared folder for CIFS/SMB, NFS and FTP
- File sharing across Windows, Mac, and Linux/UNIX
- Windows ACL
FTP Server - FTP over SSL/TLS (Explicit)
- FXP support
- Passive ftp port range control
Access Right Management - Batch users creation
- Import/Export users
- User quota management
- Local user access control for CIFS/SMB and FTP
Domain Authentication Integration - Microsoft Active Directory support
- LDAP client
- Domain users login via CIFS/SMB, FTP
Resource Monitor SNMP V1, V2, V3
Network recycle bin Network recycle bin for file deletion via CIFS/SMB, File Station and FTP
System Log & Notification Center - System Log: Yes
- Notification Center: -
Smart Fan Administration - Smart file filter
- Comprehensive logs (events & connection)
- Syslog client management
- System settings backup and restore
Internet protocol IPv4 & IPv6
10 Gigabit NICs with jumbo frame LACP, Load Balance, Failover, Round Robin
Protocols CIFS/SMB2/SMB3, NFS v3/NFS v4.1, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, Fibre Channel, SNMP, SMTP, and SMSC
iSER (iSCSI Extensions for RDMA)
Bonjour Discovery Network access protection with auto-blocking SSH, HTTP(S), FTP, CIFS/SMB
CIFS/SMB host access control for shared folders AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP 2-step verification Service binding (based on network interfaces)
Importable SSL certificates HA Manager Fail-over Rolling Update Thirty Party Plug-ins - SMI-S Provider
- vSphere Web Client Plugin
- VAAI Plug-in (Compatible with ESXi 8): NFS, iSCSI
- VMware Storage Replication Adapter (SRA)
PC Utilities - Qfinder Pro: Windows, Mac, Linux
- myQNAPcloud Connect: Windows
- Snapshot agent for Windows VSS and VMware
- Qutil (MPIO command line tool for QES)
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.
 |  |  |
| ES1640dc v2 | 以太网络缆线 (10GbE) x 4 | 以太网络缆线 (1GbE) x 2 |
 |  |  |
| 电源线 x 2 | 十字螺丝 x 64 (适合 3.5 吋硬盘) | 十字螺丝 x 64 (适合 2.5 吋硬盘) |
 |  |  |
| E02 系列机壳专用滑轨模块，最大负载 57 公斤: RAIL-E02 | 快速安装手册 | 管理连接线 (RJ11 转 RS-232) x 1 |
 |  |  |
| NVRAM 写入快取模块断电备援电池模块 x 2 | 操作系统碟贴纸 x 4 | 硬盘抽取夹 SSD / 硬盘机种类贴纸 x 16 |
