QMiroPlus-201W

QMiroPlus-201W Specification


网络端口数量	5
2.5GbE 主机端口 (RJ45)	1
1GbE (RJ45)	4
CPU	路由器：高通IPQ4019，四核ARM Cortex A7@716.8MHz NAS：英特尔Gemini Lake J4125 四核 @2.0GHz
内存	路由器：512MB DDR3 NAS：4GB DDR4
闪存	路由器：4MB SPI NOR Flash+4GB eMMC NAS：4GB eMMC
无线天线	4根内置天线
无线标准	802.11a/b/g/n/ac
无线速率等级	AC2200
无线速率 2.4 GHz	2.4G (400Mbps): 2x2 双频(20/40MHz)
无线速率 5 GHz	5G (867+867Mbps): 2x2 双频(20/40/80MHz), 2x2 单频(20/40/80MHz)
频带 2.4 GHz
频带 5 GHZ
无线带宽	20/40/80MHz
传输输出功率	取决于国码
无线天线类型	2根内置双频(2.4G/5G)天线 2根内置单频(5G)天线
天线增益 2.4 GHz	2.5dBi, 2.6dBi
天线增益 5 GHz	4.6dBi, 4.4dBi
传输功率	24dBm
Wi-Fi 5 (802.11ac)
USB 3.2 Gen 1 端口	2 仅用于连接 USB 存储设备以扩展 NAS 存储使用
蓝牙	版本 5
蓝牙天线增益	3.42dBi
按钮	电源（用于NAS），系统重置，WPS
电源设定	12V DC
耗电量	60W
尺寸	183.5 x 105 x 143.5
重量	1.44 Kg
包装重量	2.15 Kg
操作温度	0°C ~ +40°C
操作湿度	5~95% 无凝结
凭证	JATE / CE / FCC / BSMI / NCC / IC / SRRC / CCC / VCCI / RCM / OFCA
Wi-Fi Mesh	(三频)
QNAP SD-WAN 解决方案，QuWAN

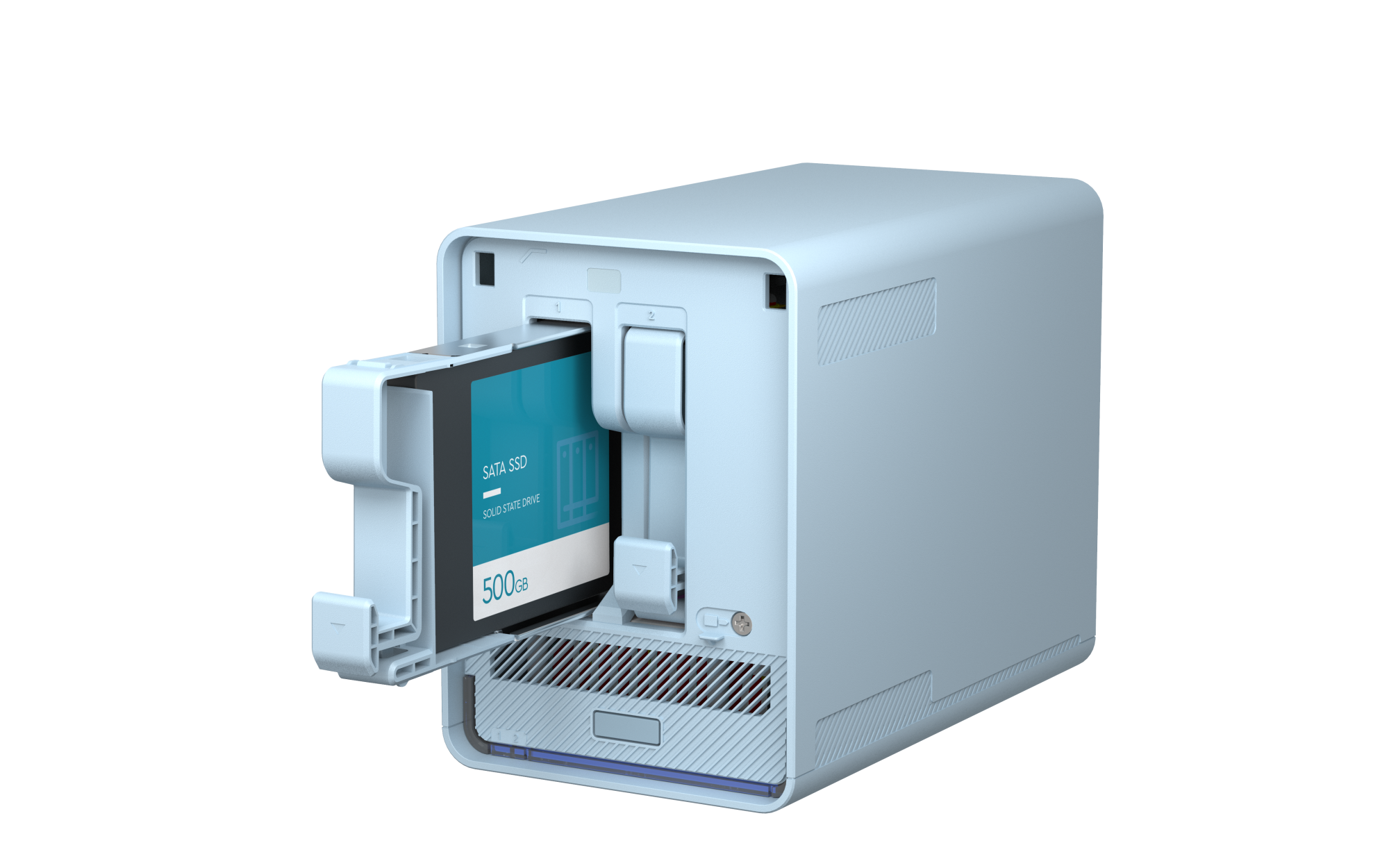

硬盘插槽数	2 x 2.5英寸 SATA 3Gb/s(兼容 6Gb/s SSD/HDD)
支持硬盘类型	2.5英寸托架： 2.5英寸 SATA固态硬盘 2.5英寸 SATA硬盘

注意：QNAP 保留因原制造商/供应商不再供应而更换部分零件或配件的权利。任何更换的部件都将经过全面测试和验证，以符合严格的兼容性和稳定性标准，并将提供与原部件相同的性能。
产品图片仅作说明之用，可能与实际产品有所不同。由于显示器的差异，产品实际颜色也可能与网站上显示的有所不同。
威联通科技得保留随时修改的权利，恕不另行通知。

System Status and Management	Device connection status Device health status WAN status Wireless status Firmware schedule management Show more...
Operation Modes	Wireless router mode Access point (AP) mode
Wired Network Management	WAN port x1 DHCP client PPPoE Static IP LAN port x 3 DHCP server Reserved IP table Show more...
Wireless Network Management	Supports IEEE 802.11ac (Wi-Fi 5) Supports MU-MIMO Supports band steering for dual-band (2.4GHz and 5GHz bandwidth) access points Transmission power (high, middle, and low) 20/40/80 MHz bandwidth RTS/CTS (Request to Send/Clear to Send) function Dual-band 2.4G and 5G band settings Guest wireless Smart connect SSID and password configuration Wireless scheduler Wireless (Protected Setup (WPS) Show more...
WiFi Mesh	Support up to 4 device(1 master 3 satellites per mesh system) Tri-band Add/delete node
IPv4 routing management	Direct route Static route
NAT	Port forwarding and Network Address Translation (NAT) Support FTP ALG, PPTP ALG and SIP ALG
QVPN	Secure remote access with L2TP, OpenVPN and QBelt (QNAP proprietary) protocol Client IP pool configuration VPN client management Connection logs Maximum tunnel scale: 30 Show more...
Parental Controls	Website filter Safe search Youtube Google Bing Show more...
System Setting	Restart, Reset, Backup, Audio Alert Local account, QNAP ID, Remote management Even Logs
Firmware	Firmware update Live update Schedule update Manual update Display mesh nodes firmware status Show more...
QuWAN SD-WAN Service	Auto multi-site VPN WAN optimization WAN aggregation Failover Load Balance Traffic monitoring using QuWAN Orchestrator Please refer to QuWAN page Show more...
QuRouter APP supported	Managed QMiroPlus-201W/QMiro-201W Create WiFi mesh Add/delete Wifi mesh node Please refer to QuRouter APP page
NAS Storage OS	QTS 4.5.2(embedded Linux)
Support QNAP APPs	Please refer to home cloud 2.0 page
