| 尺寸 (深 x 宽 x 高) | 110 × 18.3 × 68.9 mm |
| 控制器 | Broadcom BCM57412 |
| 端口数量 | 2 x SFP+ ports |
| 传输端口 | SFP+ |
| PCIe 与通道 | PCIe Gen3 x8 |
| 传输速率 | 10Gbps/1Gbps |
| IEEE 标准 | IEEE Std 802.3ae 10 Gigabit Ethernet
IEEE Std 802.3az Energy Efficient Ethernet
IEEE Std 802.3ap based auto-negotiation between 1, 10, 40 Gb/s, FEC, and KR startup
Proprietary Ethernet protocols (20/40GBASE-R2, 50GBASE-
R4)
IEEE Std 802.3ad Link Aggregation and Failover
IEEE 802.1Q, 802.1p VLAN tags and priority
IEEE Std 802.1Qau Congestion Notification (QCN)
IEEE Std 802.1Qaz (ETS) |

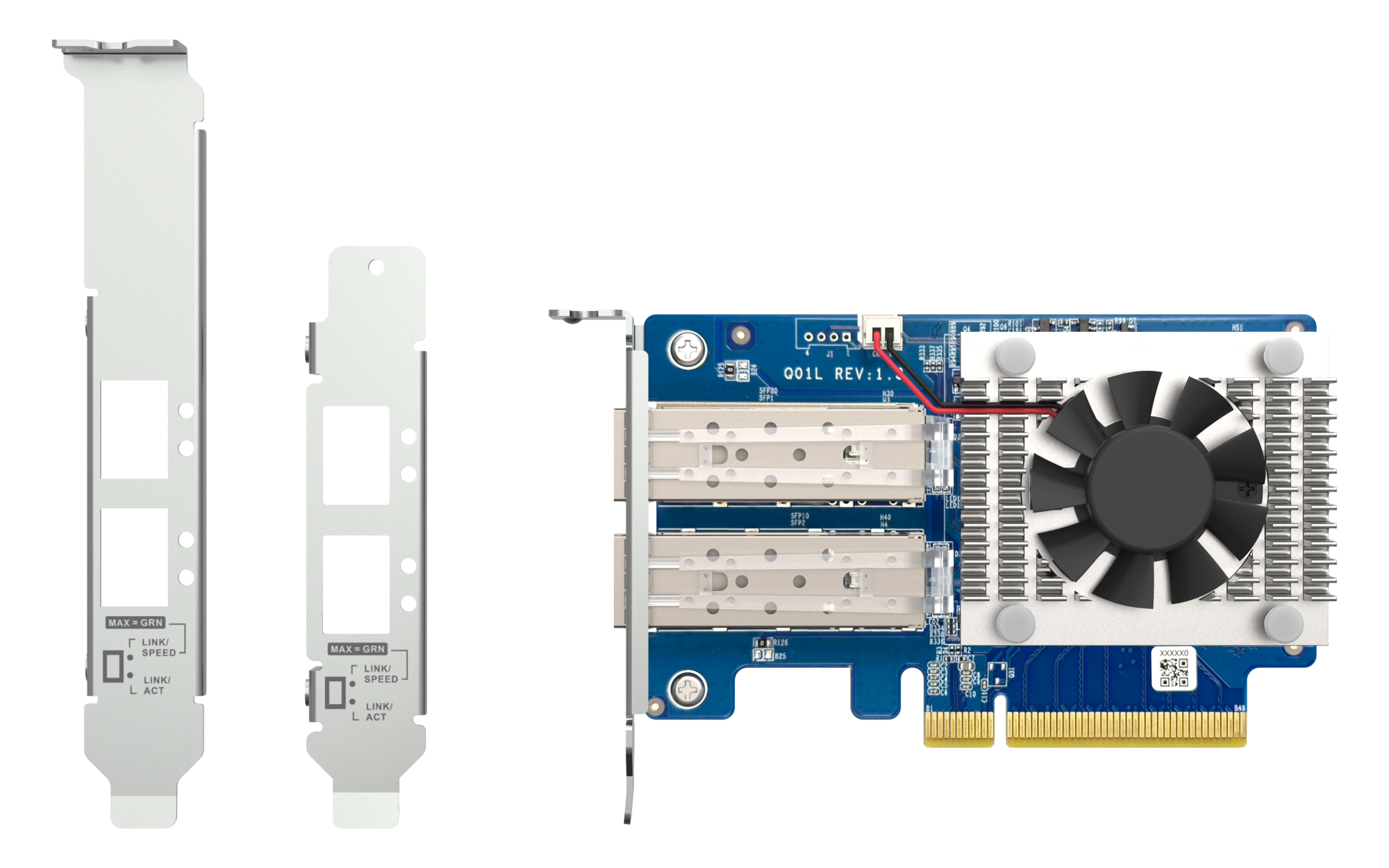

| 挡板 | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| 支持 SR-IOV | |
| 支持的 NAS 操作系统 | At least QTS 5.2.1 &QuTS Hero h5.2.1 build 20241106 |
| 支持的 QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| 支持 Ubuntu 商业 Linux 发行版 | Ubuntu 24.04 |
| 支持 Windows | Windows 11 |
| Support Windows Server | Windows Server 2022 |
| 端口与连接线 | SFP+ DAC cable (1.5M, 3M, 5M) or SFP+ OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty | 3 years |
