| 运算加速卡 | FPGA |
| 主要 MPGA | Intel® Arria® 10 GX1150 FPGA |
| 操作系统 | PC: Ubuntu 16.04.3 LTS 64-bit, CentOS 7.4 64-bit, Windows 10 (More OS are coming soon)
NAS: QTS 4.4.0~4.4.3 (Installing “Mustang Card User Driver” in the QTS App Center is required.) |
| 电压调节器与电源供应器 | Intel® Enpirion® Power Solutions |
| 内存 | 8G on board DDR4 |
| 界面 | PCI Express x8
Compliant with PCI Express Specification V3.0 |
| 耗电量 (瓦) | <60W |
| Operating Temperature & Relative Humidity | 5°C~60°C (ambient temperature)，5% ~ 90% |
| 冷却 | Active fan: (50, 50, 10 mm) x 2 |
| 尺寸 | 169.5, 68.7, 33.7 |
| 电源接头 | *Preserved PCIe 6-pin 12V external power |

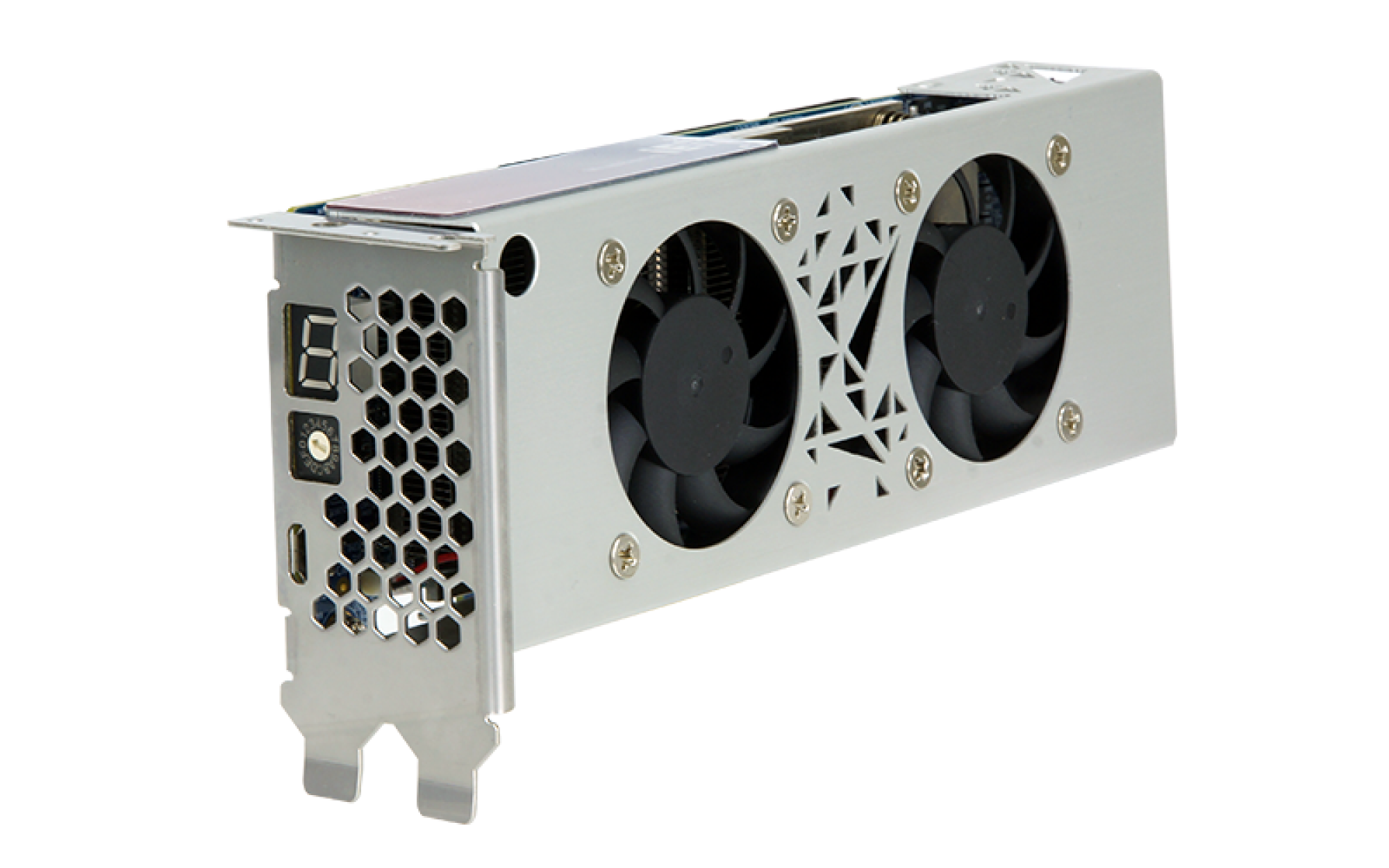

| 指拨开关/LED 指示灯 | Up to 8 cards can be supported with operating systems other than QTS; QNAP TS-2888X NAS supports up to 4 cards. Please assign a card ID number (from 0 to 7) to the Mustang-F100 by using rotary switch manually. The card ID number assigned here will be shown on the LED display of the card after power-up. |
| 注意事项 | *Standard PCIe slot provides 75W power, this feature is preserved for user in case of different system configuration. |
