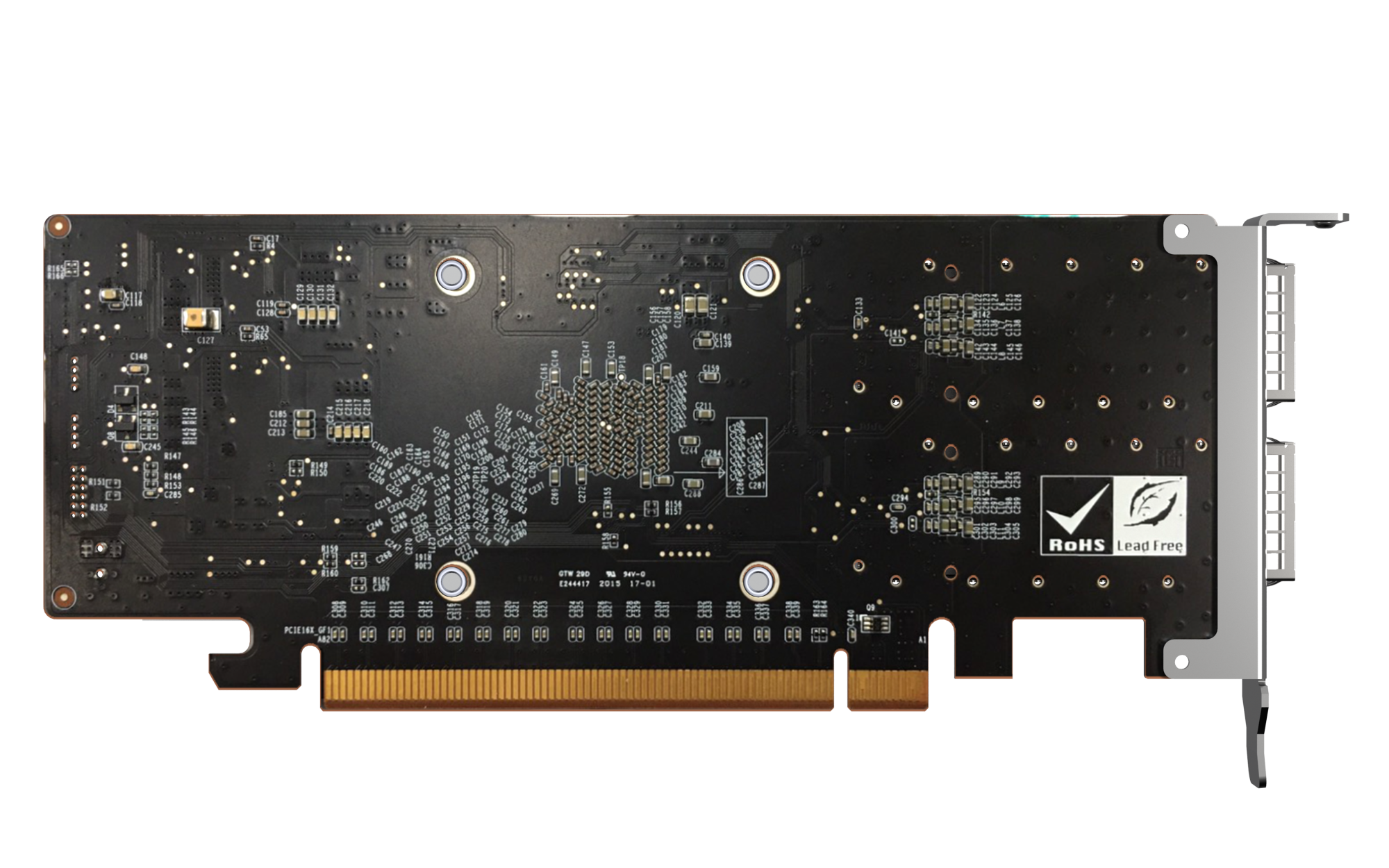

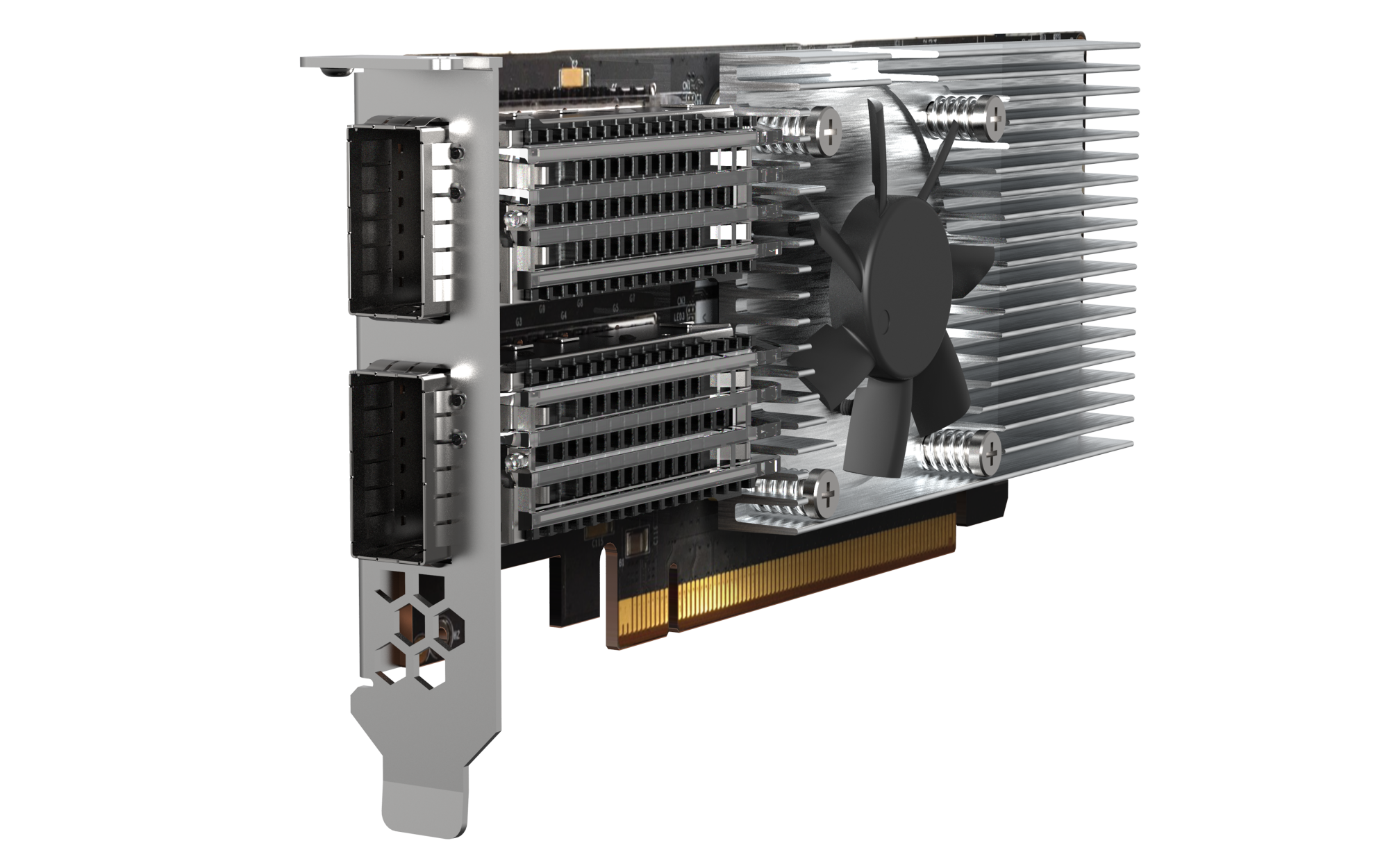

| 尺寸 (深 x 宽 x 高) | 162.74 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| 控制器 | Intel Ethernet Controller E810-CAM2 |
| 端口数量 | 2 x QSFP28 ports |
| 传输端口 | QSFP28 |
| PCIe 与通道 | PCIe 4.0 x16 (Compatible to PCIe 3.0 x16) |
| 传输速率 | 100Gbps |
| IEEE 标准 | IEEE Std 802.3-2018
IEEE Std 802.3cd-2018
IEEE P802.3bd-2011
IEEE Std 802.1D-2004
IEEE Std 802.1Q-2011
IEEE Std 802.1AX-2008
IEEE P802.1Qbb-2011
IEEE P802.1Qbg-2012
IEEE P802.1BR/D3.3
IEEE Std 802.1AB-2009 |

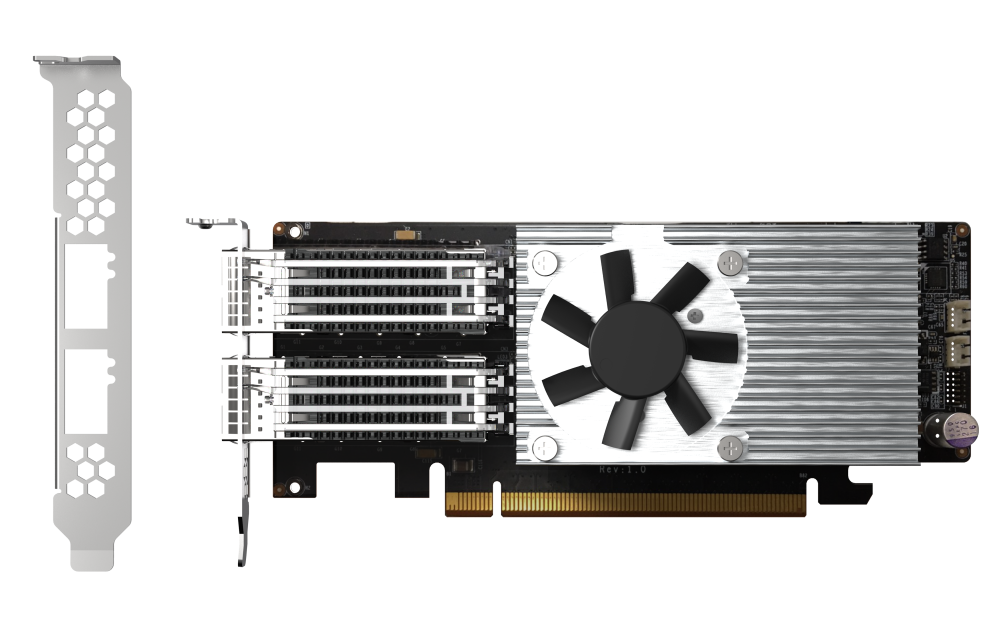

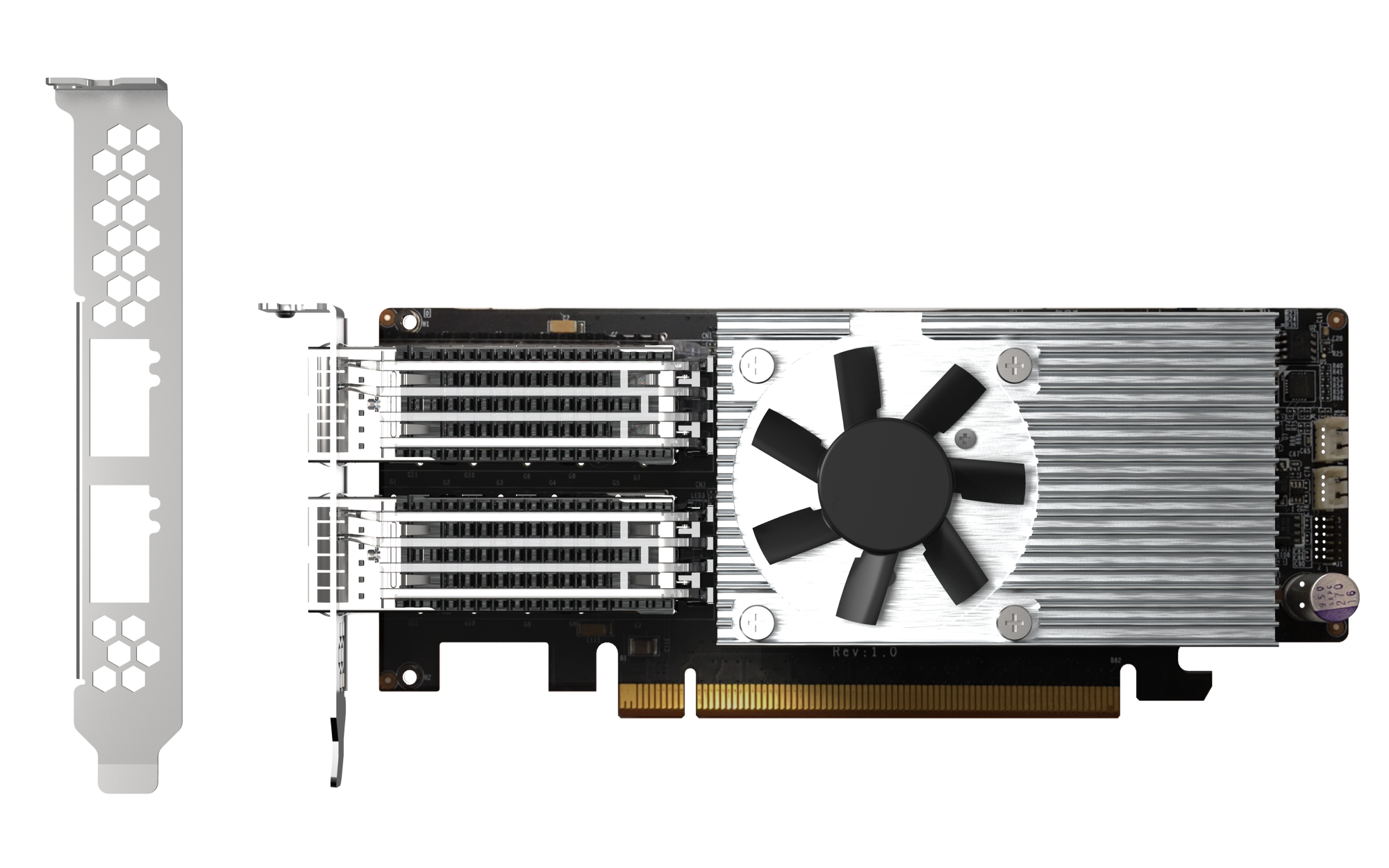

| 挡板 | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| 1K 输入及输出 QoS 层级 | On-chip QoS |
| 支持的 NAS 操作系统 | QTS / QuTS hero (recommend an upgrade to the latest version)；Windows (Driver Required)；Linux (Driver Required) |
| 支持的 QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| 支持 Ubuntu 商业 Linux 发行版 | Ubuntu 18.04/20.04 |
| Support Windows Server | Windows Server 2019 |
| 端口与连接线 | QSFP28 DAC cable or OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 2 x Brackets |
| Standard Warranty | 3 years |
