| 尺寸 (深 x 宽 x 高) | 117.33 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| 线材 | CAB-DAC30M-SFP28,CAB-DAC15M-SFP28,TRX-25GSFP28-SR |
| 控制器 | NVIDIA Mellanox ConnectX-6 Lx |
| 端口数量 | 2 x SFP28 |
| 传输端口 | SFP28 |
| PCIe 与通道 | PCIe Gen4 x8 |
| 传输速率 | 25Gbps/10Gbps |
| IEEE 标准 | IEEE 802.3ae 10 Gigabit Ethernet
25/50 Ethernet Consortium 25G and 50G supporting all FEC modes
IEEE 802.3by 25G supporting all FEC modes
IEEE 802.3ad, 802.1AX Link Aggregation
IEEE 802.3az Energy Efficient Ethernet (supports only “Fast-Wake” mode)
IEEE 802.3ap based auto-negotiation and KR startup
IEEE 802.1Q, 802.1P VLAN tags and priority
IEEE 802.1Qaz (ETS) |

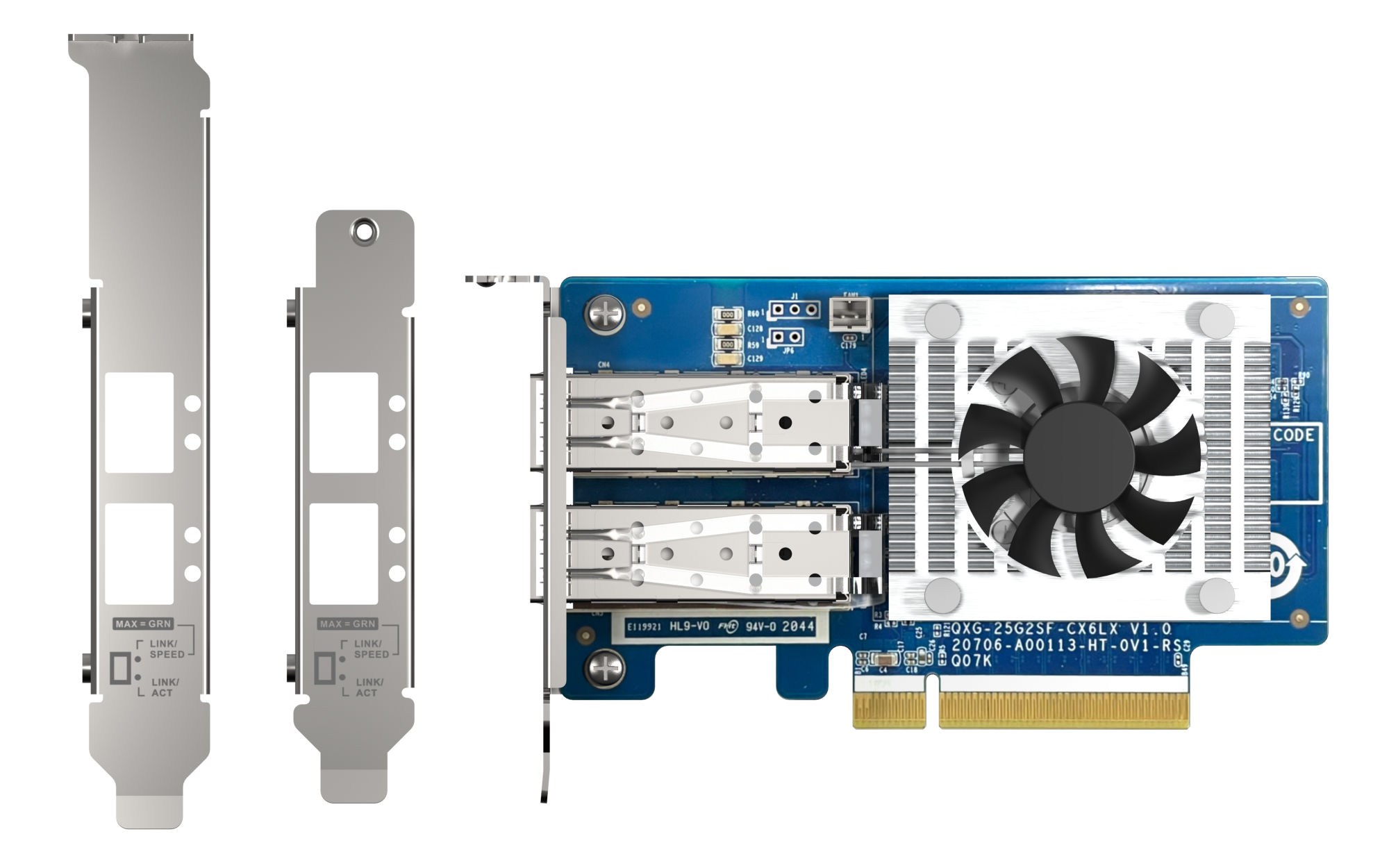

| 挡板 | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| 支持 SR-IOV | |
| 支持聚合以太网络 RDMA (RoCE)、零接触 RoCE (ZTR) | |
| 支持 VLAN 插入/等量配置 | |
| 支持 iSER | |
| 支持 NVGRE、VXLAN、Geneve | |
| 虚拟功能数量 | 512 |
| 每个主机的 phusical function 数 | 8 |
| 支持的 NAS 操作系统 | QTS/QuTS hero (recommend an upgrade to the latest version) |
| 支持的 QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| 支持 Ubuntu 商业 Linux 发行版 | -Ubuntu 20.04
driver: mlx5_core, version: 5.15.0-97-generic
-Ubuntu 22.04
driver: mlx5_core, version: 6.5.0-35-generic |
| 支持 Windows | Windows 8/10 () |
| Support Windows Server | Windows Server 2016/2019 |
| 端口与连接线 | SFP28 DAC cable (3M) or SFP28 OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty | 3 years |
