| 尺寸 (深 x 宽 x 高) | 64.8 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| 控制器 | Intel Ethernet Controller I225-LM |
| 端口数量 | 1 x NBASE-T (RJ45) |
| 传输端口 | NBASE-T (RJ45) |
| PCIe 与通道 | PCIe Gen2 x1 |
| 传输速率 | 2.5Gbps/1Gbps/100Mbps/10Mbps |
| IEEE 标准 | IEEE 802.3
IEEE 802.1Qbu
IEEE 802.3br
IEEE 802.1Qbv
IEEE 802.1AS-REV
IEEE 802.1p,Q
IEEE 802.1Qav
EEE 802.3az |
| 挡板 | full-height and specialized for QNAP NAS |
| 支持的功能 | PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT** |
| 支持的 NAS 操作系统 | QTS/QuTS hero (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required) |
| 支持的 QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| 支持 Ubuntu 商业 Linux 发行版 | Linux Stable Kernel 4.20/5.x |
| 支持 RedHat | Linux Stable Kernel 4.20/5.x |
| 支持 Windows | Windows 10 (1809 or later) |
| Support Windows Server | Windows Server 2019 |
| 支持 Debian | Linux Stable Kernel 4.20/5.x |
| 端口与连接线 | RJ-45; over CAT-5 class cable |

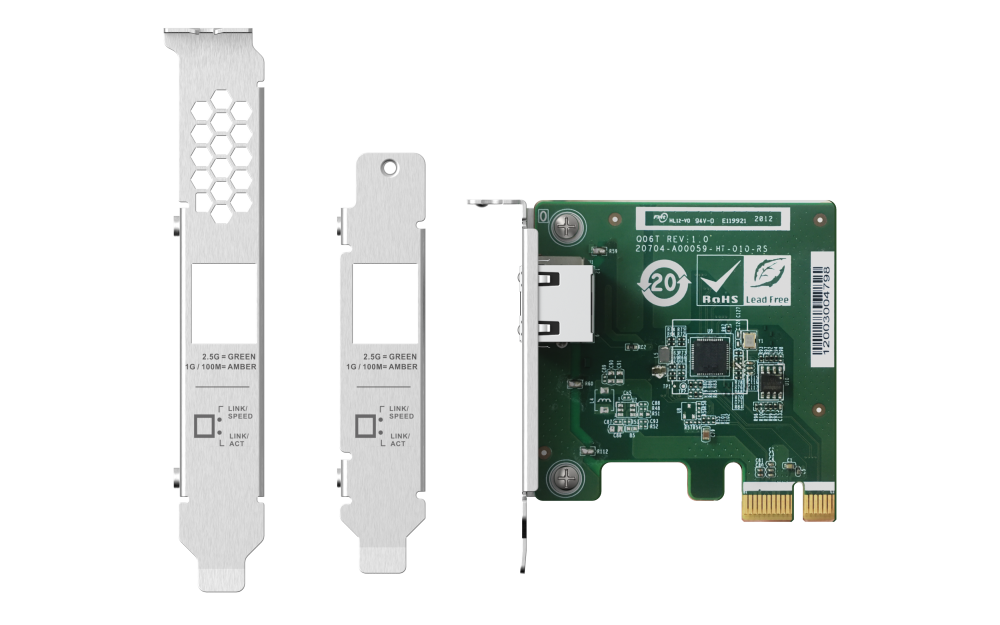

| Package Contents | 1 x Network card (Low-profile bracket pre-installed); 1 x QIG; 2 x Brackets (full-height and specialized for QNAP NAS) |
| Standard Warranty | 2 year |
