TS-201 Specification
| Processor: | SoC 266MHz |
| Memory: | 128MB DRAM, 16MB Flash |
| HDD Capacity: | 2 x 3.5" SATA I/II HDD, support hot swap and up to 1TB (the HDD is not included) |
| LAN Port: | 1 x Gigabit RJ-45 Ethernet port |

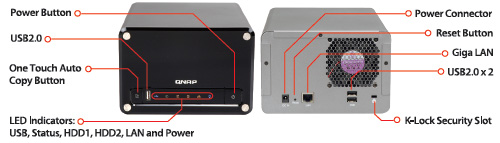

| LED Indicators: | USB, Status, HDD, LAN, Power |
| USB: | 3 x USB 2.0, support USB printer, |
| Buttons: | Intelligent USB auto copy button |
| Alarm Buzzer: | System warning |
| Form Factor: | Compact cubic type |
| Dimensions: | 214(D) x 175(W) x 115(H) mm |
| Weight: | Net weight: 2.4Kg |
| Operation Environment: | Temperature 0~35°C |
| Power Supply: | Input: 100-240V AC, 50/60Hz, Output: 12V DC, 5A |
| Power Consumption: | Sleep mode 10.2W |
| Energy-saving Design: | HDD sleep mode |
| Thermal Solution: | Silent Fan Case |
| Secure Design: | K-Lock security slot for theft prevention |
| Sound Level: | Standby: 36 dB In operation: 42dB |
 | |
