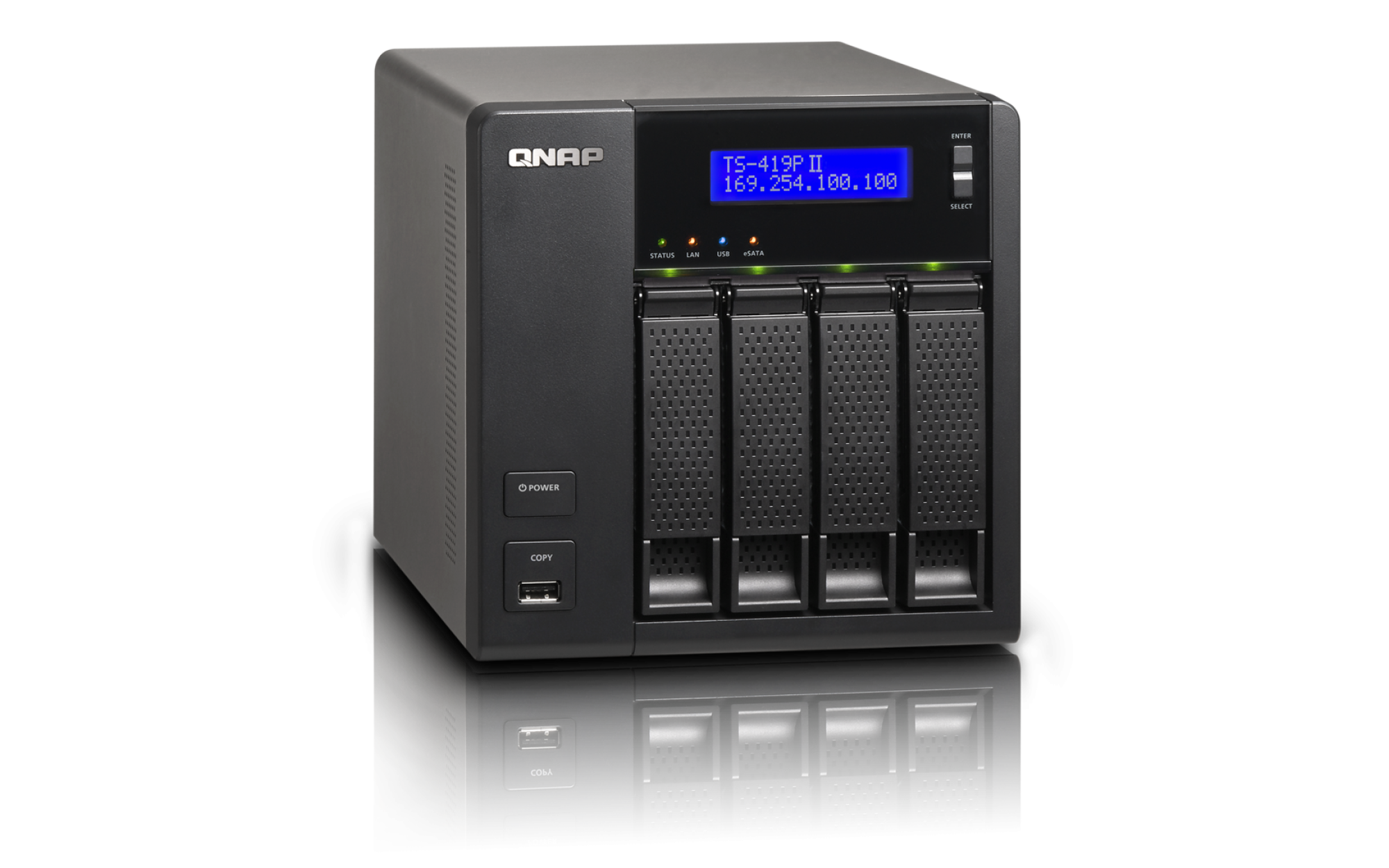

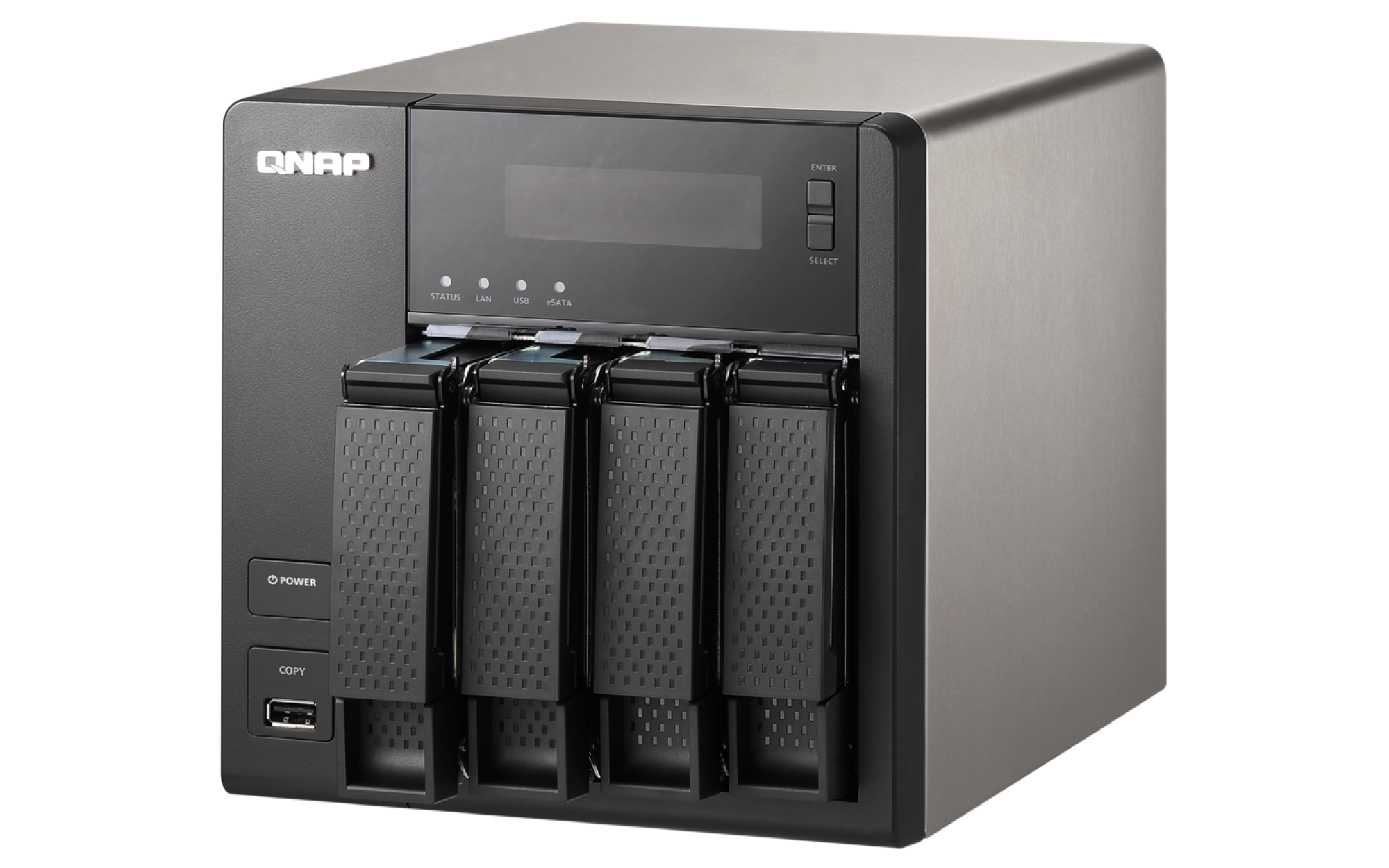

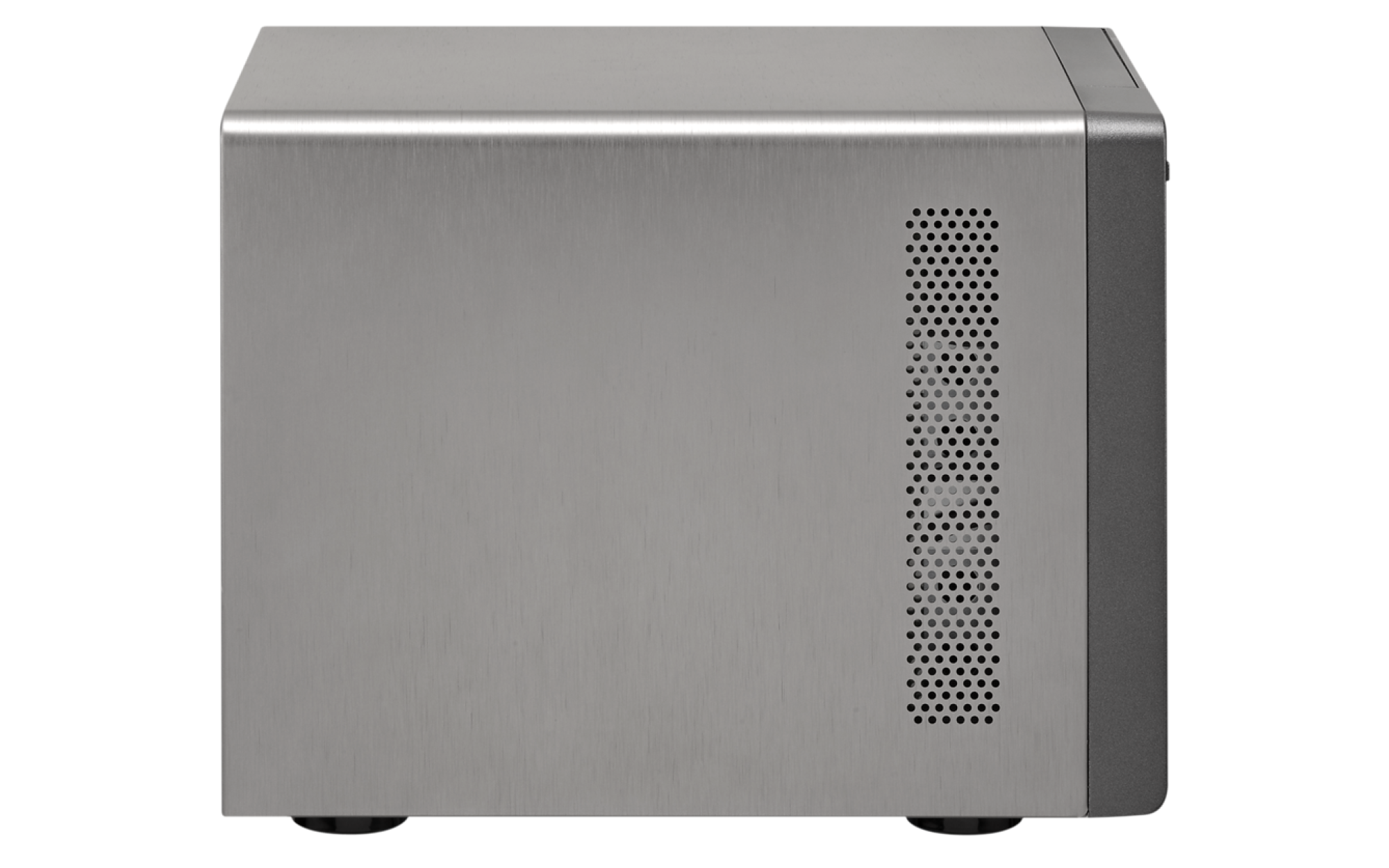

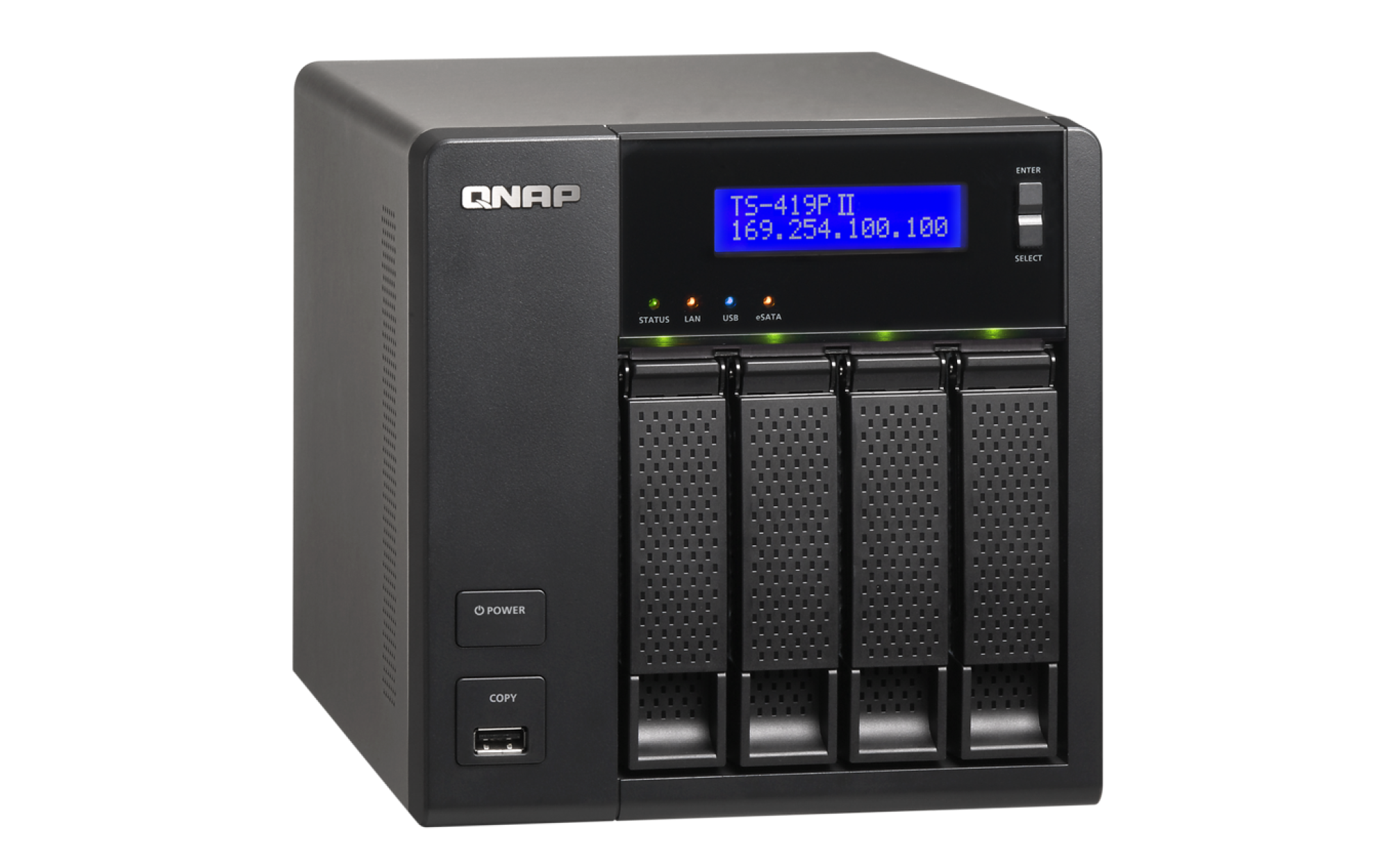

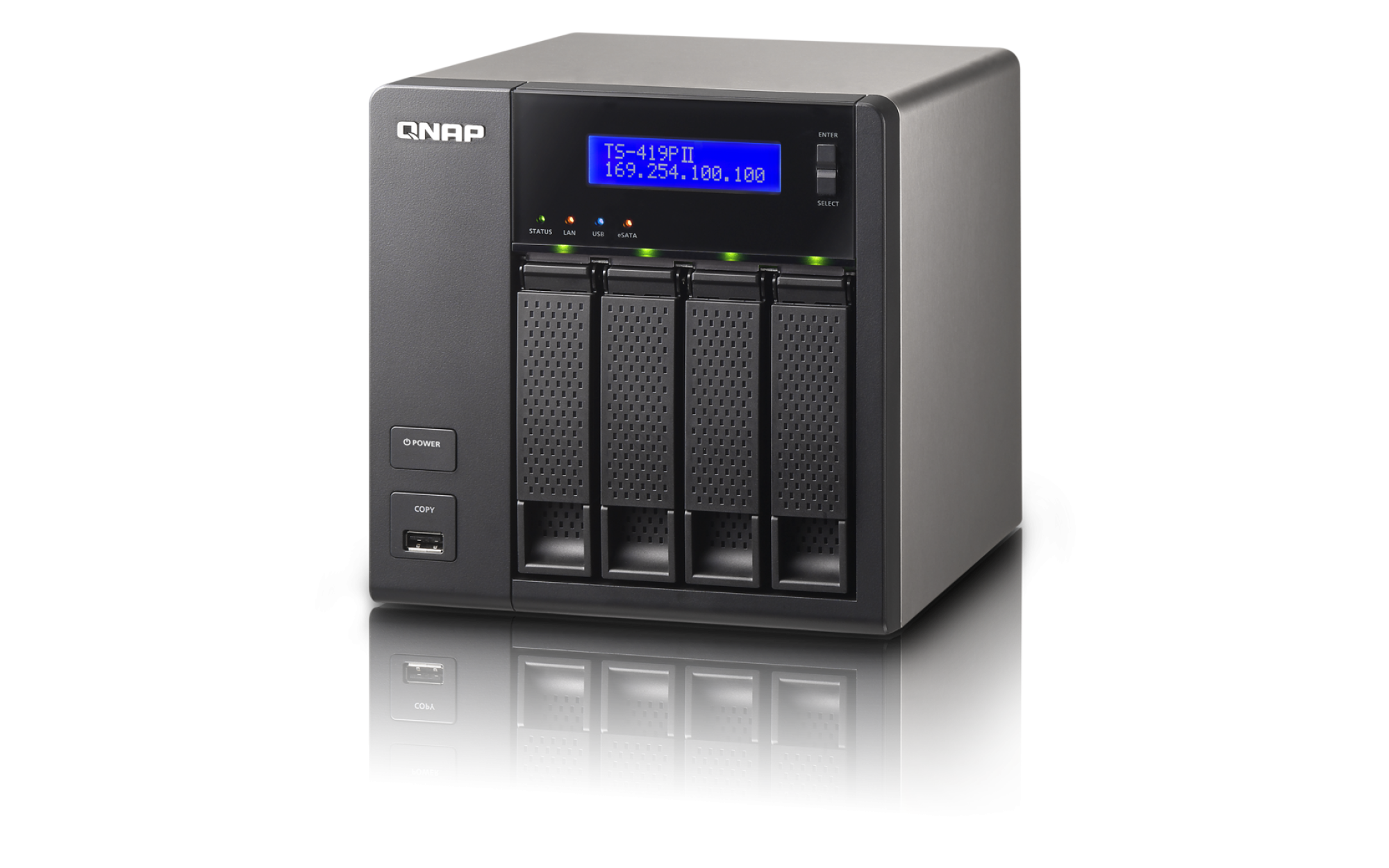

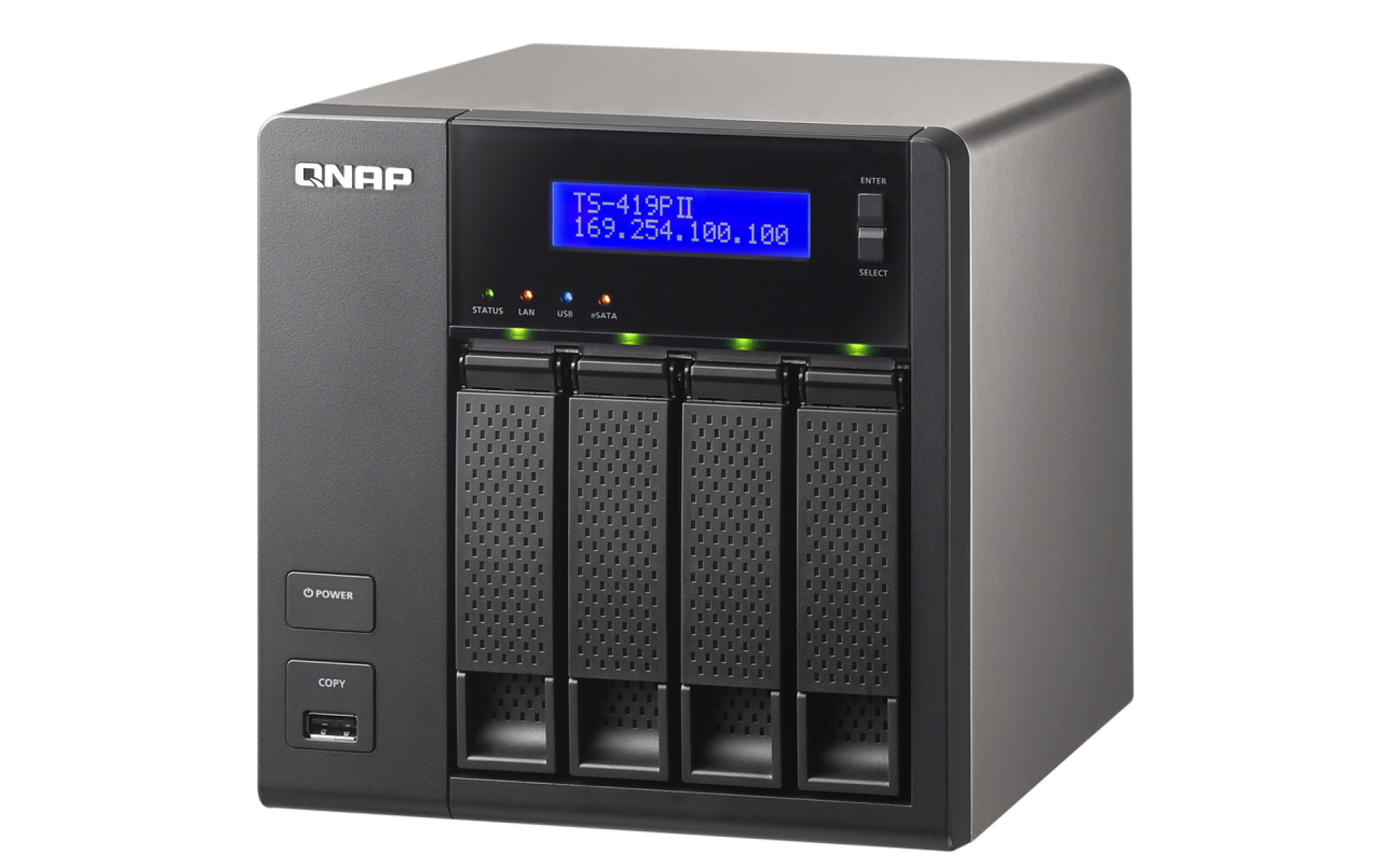

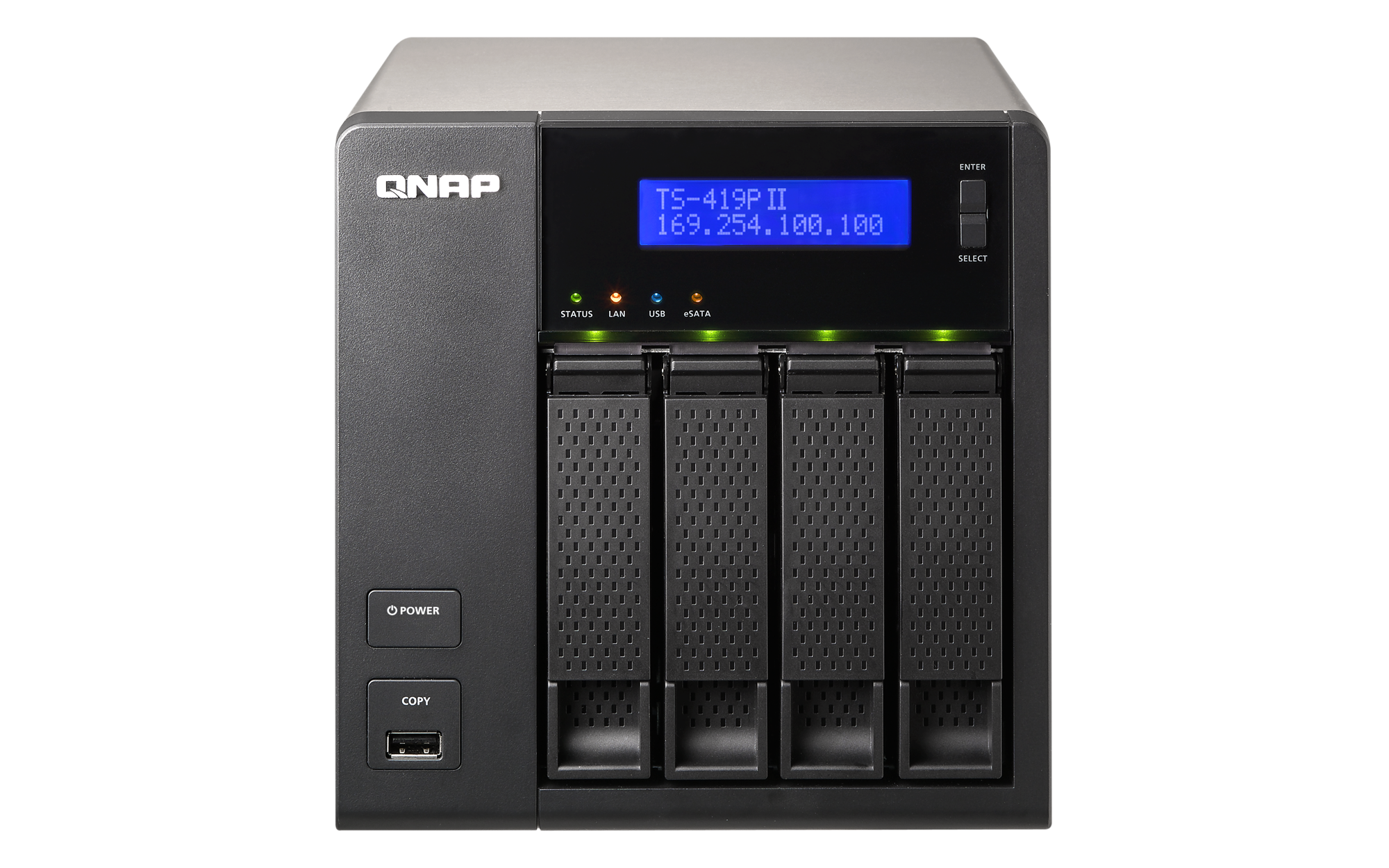

TS-419P II Specification

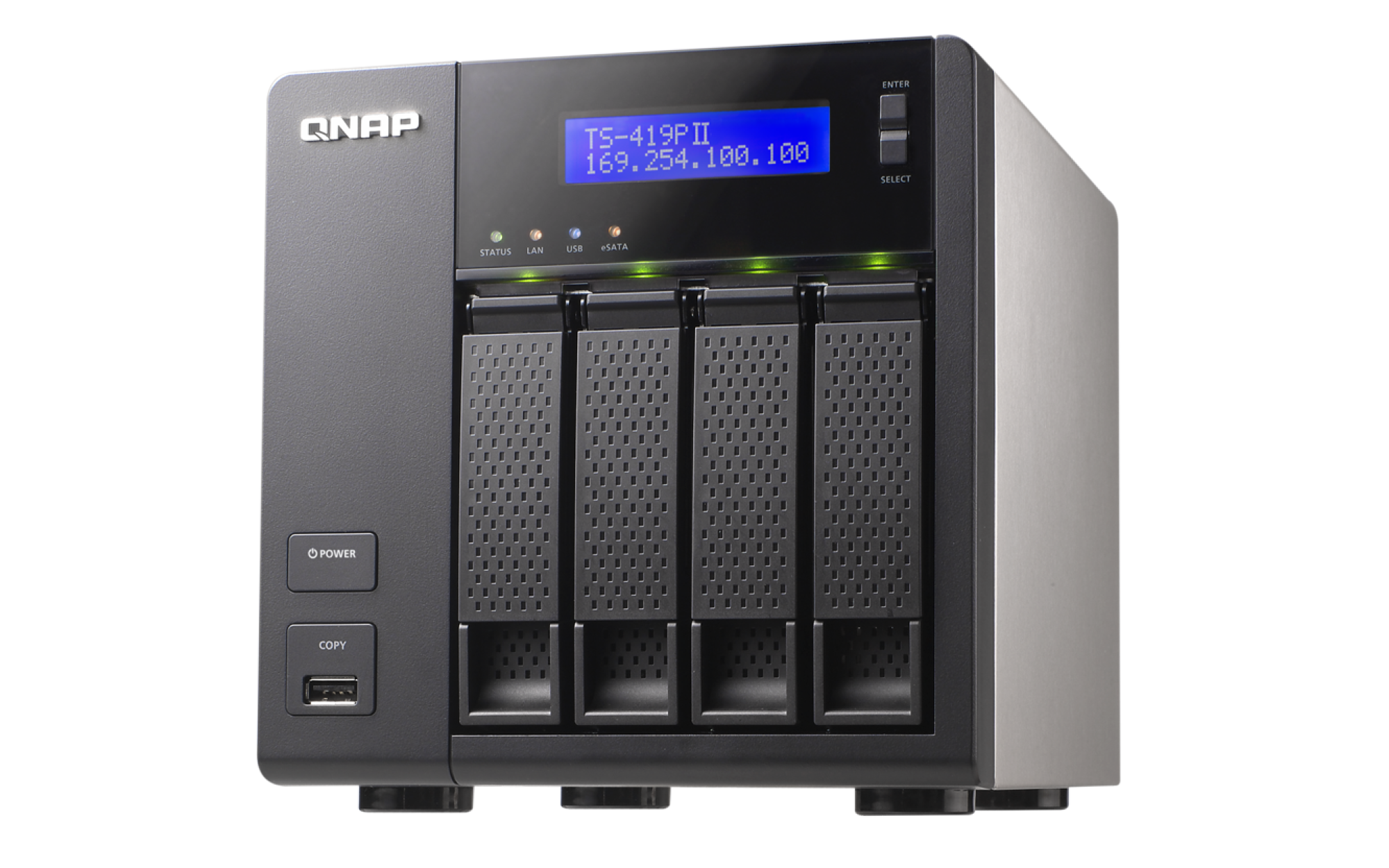

TS-419P II
规格信息
购买→
處理器 Marvell 2.0GHz
記憶體 512MB DDRIII RAM
快閃記憶體 16MB DOM
支援硬碟數量類型 4 x 3.5" SATA 6Gb/s, SATA 3Gb/s 硬碟或 2.5" SATA, SSD
NOTE:
  1. 最大總容量： 16TB
  2. 系統出貨不包含硬碟。

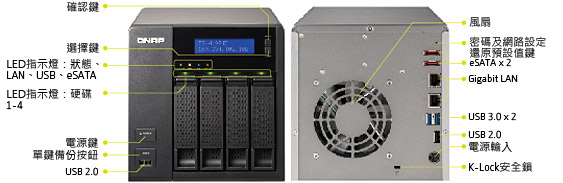

硬碟架 支援 4 顆硬碟熱抽換

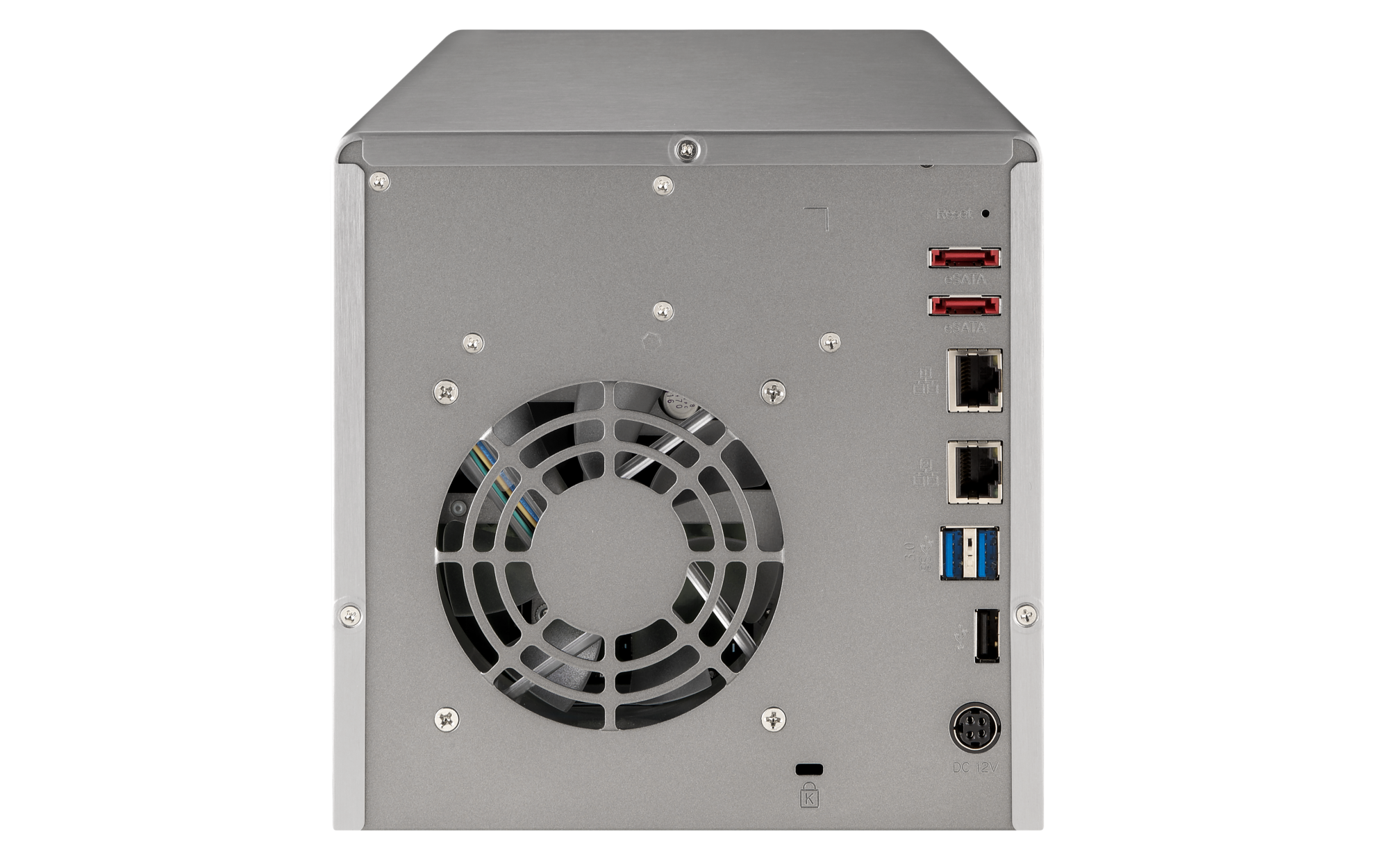

網路埠 2 x Gigabit RJ-45 網路埠
LED 指示燈 狀態、LAN、USB、eSATA、HDD 1、HDD 2、HDD 3、HDD 4
USB 2 個 USB 2.0 (正面：1；背面：1); 2 個 USB 3.2 Gen 1 (背面：2) (1)
支援USB印表機、硬碟、隨身碟、USB集線器以及USB不斷電系統..等等
eSATA 2 個 eSATA 埠（背面）
按鍵 電源鍵、USB 單鍵備份、系統重置按扭
LCD面板 單色背光 LCD 面板，使用確認鍵、選擇鍵進行設定。
警報器 系統警報
機種 直立式
尺寸 177(高) x 180(寬) x 235(深) mm
6.97(高) x 7.09(寬) x 9.25(深) inch
重量 淨重: 3 Kg (6.61 lbs)
毛重: 4.6 Kg (10.14 lbs)
耗電量 休眠模式: 13W
運行中: 26W
（含 4 顆 500GB 硬碟）
溫度 0~40˚C/ 32~104°F
相對濕度 5~95% RH non-condensing, wet bulb: 27˚C.
Sound Level
(Standby/運行中)		 35.6 dB/ 36.7 dB
電源 外接電源,96W, 輸入： 100-240V
安全設計 K-Lock 安全鎖
風扇 1 x 靜音風扇 (9 cm, 12V DC)
Note
(1): 2012年5月後生產的TS-419P II搭配USB3.0
注意：请仅使用 QNAP 内存模块来保持系统的性能与稳定性。若 NAS 设备有多个内存模块，请使用规格相同的 QNAP 模块，并参考硬件用户手册安装兼容的 QNAP 内存模块。
警告：使用不受支持的模块可能导致性能下降、引发错误或使操作系统无法启动。
QNAP 有权视供货商产品供货情况，更换部分零件或配件。其兼容性与稳定性皆经过相同严格的测试检验，请用户放心使用。
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
设计及规格若有变更，恕不另行通知。产品图仅供示意，实际产品可能有所不同。
由于屏幕显示误差，产品实际颜色亦可能和网站所示有所不同。

Operating System

  • Embedded Linux

Supported Clients

  • Windows XP, Vista, Windows 7/8  (32/64-bit), Windows Server 2003/2008 R2
  • Apple Mac OS X
  • Linux & UNIX

Supported Browsers

  • Microsoft Internet Explorer 8, 9
  • Mozilla Firefox 8, 9, 10
  • Apple Safari 4, 5
  • Google Chrome

Multilingual Support

  • Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System

  • Internal Hard Drive: EXT3, EXT4
  • External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

  • TCP/IP (IPv4 & IPv6: Dual Stack)
  • Dual Gigabit NICs with Jumbo Frame
    • Failover
    • Multi-IP Settings
    • Port Trunking/NIC Teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
  • Service Binding based on Network Interfaces
  • Virtual LAN (VLAN)
  • DHCP Client, DHCP Server
  • Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour Discovery
  • USB Wi-Fi Adapter Support

Backup Solution

  • Real-time Remote Replication (RTRR)
    • Works as Both RTRR Server & Client with Bandwith Control
    • Real-time & Scheduled Backup
    • Encryption, Compression, File Filter, and Transfer Rate Limitation
  • Block-level Remote Replication
    • Works as Both Rsync Server & Client with Bandwidth Control
    • Encrypted Replication between QNAP NAS Servers
  • USB One Touch Backup (Import/Export)
  • Desktop Backup by QNAP NetBak Replicator for Windows
  • Apple Time Machine Support with Backup Management
  • Data Backup to Multiple External Storage Devices
  • Data Backup to Cloud Storage (Amazon S3, ElephantDrive)

Security

  • IP Filter and Policy-based Automatic IP Blocking
  • Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH)
  • CIFS Host Access Control for Shared Folders
  • Antivirus Protection
  • AES 256-bit External Drive Encryption*
  • Importable SSL Certificate
  • Instant Alert via E-mail, SMS, Instant Messaging (Windows Live), Beep, and LCD Panel

Disk Management

  • Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5+hot spare
  • Online RAID Capacity Expansion & Online RAID Level Migration
  • Bad Block Scan & Hard Drive S.M.A.R.T.
  • Global Hot Spare Drive (4-bay NAS and above)
  • RAID Recovery
  • Bitmap Support



iSCSI (IP SAN)

  • iSCSI Target
    • Multi-LUNs per Target
    • Up to 256 Targets/LUNs Combined
    • Supports LUN Mapping & Masking
    • Online LUN Capacity Expansion
    • Supports SPC-3 Persistent Reservation
    • Supports MPIO & MC/S
  • iSCSI LUN Backup, One-time Snapshot, and Restore
  • iSCSI Connection and Management by QNAP Finder (Windows)
  • Virtual Disk Drive (via iSCSI Initiator)
    • Stack Chaining Master
    • Max No. of Virtual Disk Drives: 8

Server Virtualization & Clustering

  • Supports VMware vSphere
  • Supports Citrix XenServer
  • Supports Windows Server 2008 R2 Hyper-V & Failover Clustering

Power Management

  • Wake on LAN
  • Internal Hard Drive Standby Mode
  • Scheduled Power on/off (Max 15 Settings)
  • Automatic Power on after Power Recovery
  • USB and Network UPS Support with SNMP Management

Access Right Management

  • Max No. of Users: 4,096
  • Max No. of User Groups: 512
  • Max No. of Network Shares: 512
  • Batch Users Creation
  • Import/Export Users
  • User Quota Management
  • Subfolder Permissions Support for CIFS/SMB, AFP, FTP and Web File Manager

Domain Authentication Integration

  • Microsoft Active Directory (AD)
  • LDAP Server
  • LDAP Client
  • Domain Users Login via CIFS/SMB, AFP, FTP, and Web File Manager

MyCloudNAS Service

  • Private Cloud Storage and Sharing
  • Free Host Name Registration (DDNS)
  • Auto Router Configuration (via UPnP)
  • MyCloudNAS Connect for Easy Connection (Windows utility)

Storage Plug & Play

  • Windows Software: QNAP Finder
  • Create and Map Shared Folders
  • Create and Connect to iSCSI Target/LUN

Web Administration

  • AJAX-based User Interface
  • Smart Fan Control
  • Dynamic DNS (DDNS)
  • SNMP (v2 & v3)
  • Resource Monitor
  • Network Recycle Bin for File Deletion via CIFS/SMB and AFP
  • Comprehensive Logs (Events & Connection)
  • Syslog Client
  • Firmware Live Update
  • System Settings Backup and Restore
  • Restore to Factory Default

Powerful All-in-one server
TS-419P II CD-ROM Ethernet cable x 1
Quick Installation Guide Power cord Flat head screw x 16 (for 3.5" HDD)


Flat head screw x 12 (for 2.5" HDD)

 Adaptor

选购配件

  1. FAN-9CM-T01
    FAN-9CM-T01
    SP-TS-TRAY-WOLOCK
    SP-TS-TRAY-WOLOCK
原包装出货的扩充卡、变压器及配件自购买日起享有一年保固。
