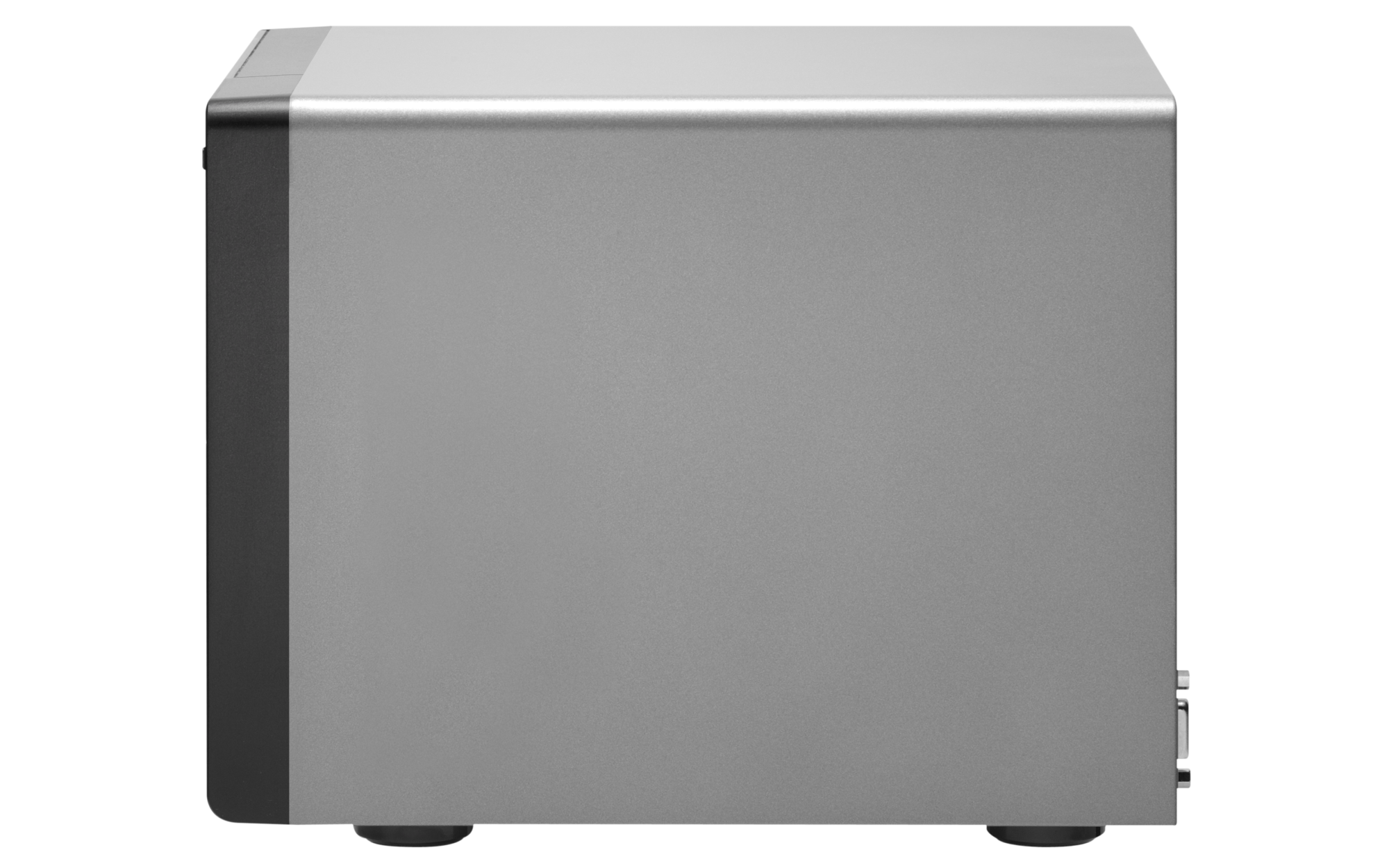

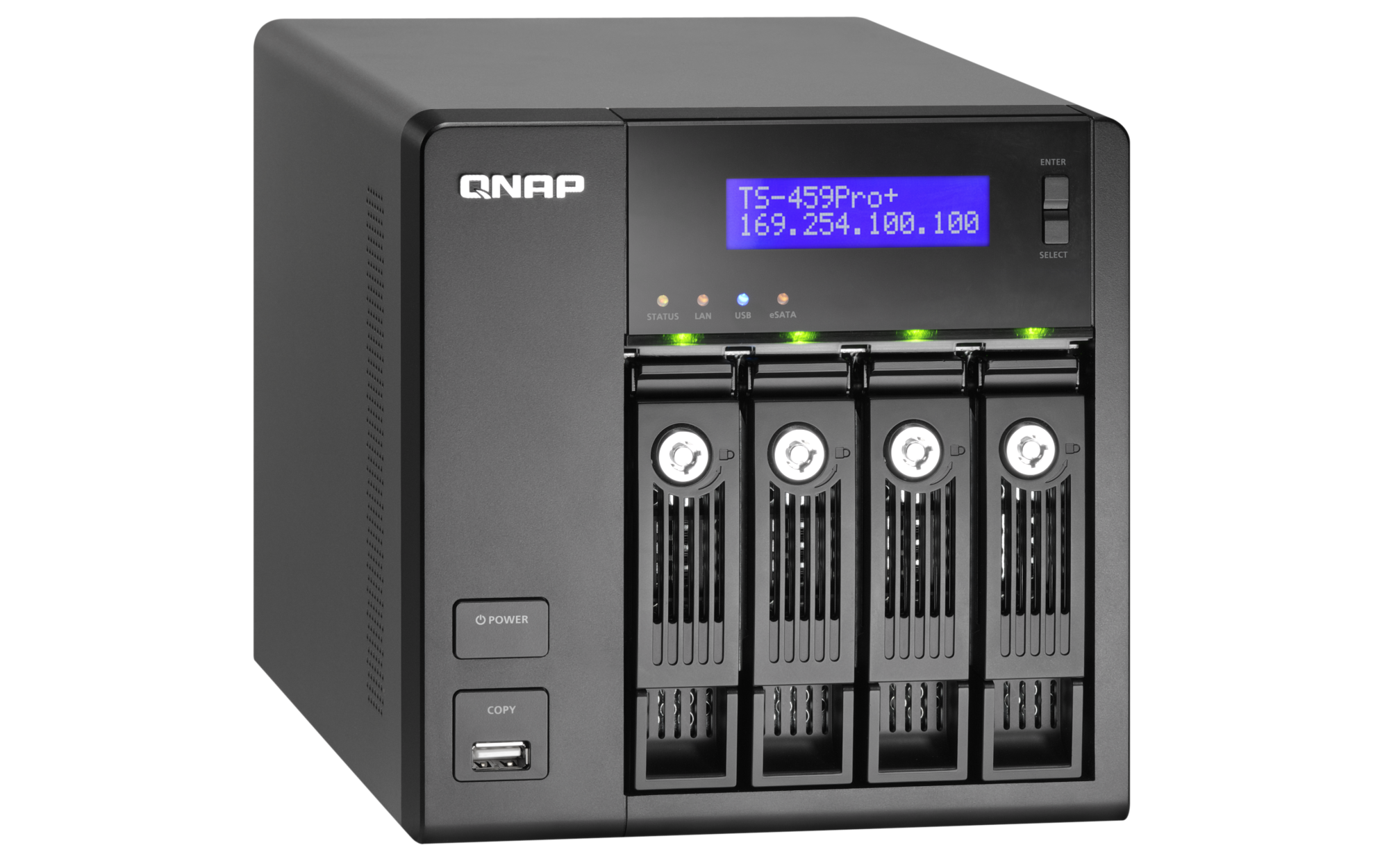

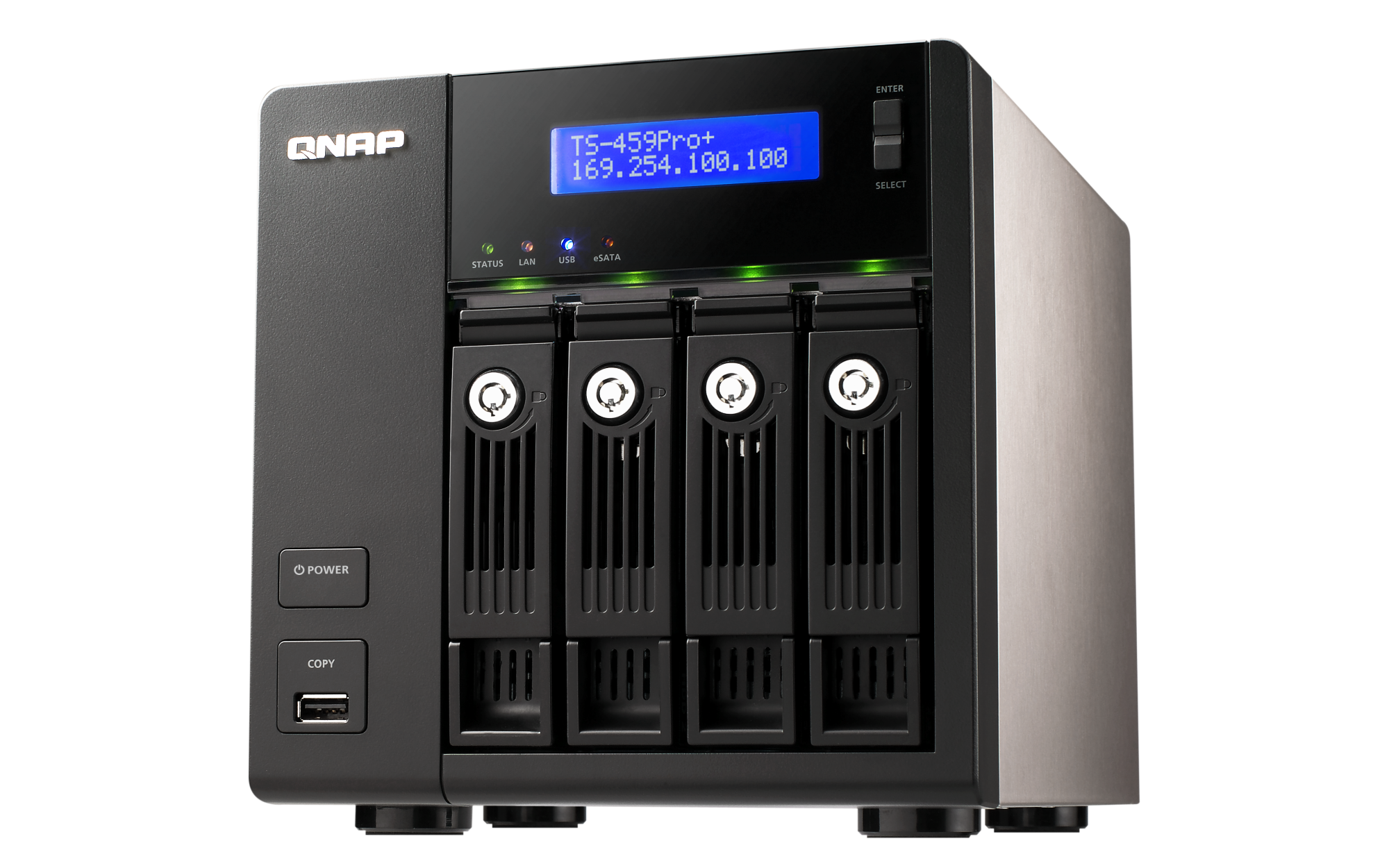

TS-459 Pro+ Specification
| CPU | Intel® Atom™ 1.8GHz Dual-core Processor |
| DRAM | 1GB RAM |
| Flash Memory | 512MB DOM |
| HDD | 4 x 2.5 or 3.5" SATA NOTE:
|
| HDD Tray | 4 x Hot-swappable and lockable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |

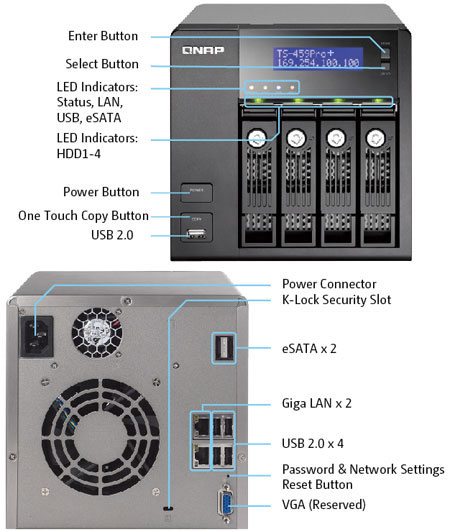

| LED Indicators | Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4 |
| USB | 5 x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS etc. |
| eSATA | 2 x eSATA port (Back) |
| Buttons | System: Power button, USB One-Touch-Backup Button, Reset button |
| LCD panel | Mono-LCD display with backlight Enter button, Select button for configuration |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Dimensions | 177 (H) x 180 (W) x 235 (D) mm 6.97 (H) x 7.09 (W) x 9.25 (D) inch |
| Weight | Net weight: 3.65 kg (8.04 lbs) Gross weight: 4.65 kg (10.24 lbs) |
| Sound Level (dB) | w/o HDD installed: 34.7 dB Stand by: 34.1 dB In operation: 36.8 dB (with 4 x 500GB HDD installed) |
| Power Consumption (W) | Sleep mode: 19W In Operation: 35W Power-off (in WOL mode): 1W (with 4 x 500GB HDD installed) |
| Temperature | 0~40˚C |
| Humidity | 0~95% R.H. |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 250W |
| Secure Design | K-lock security slot for theft prevention |
| VGA | Reserved VGA interface for maintenance |
| Fan | 1 x quiet cooling fan (9 cm, 12V DC) |
 | |
注意：请仅使用 QNAP 内存模块来保持系统的性能与稳定性。若 NAS 设备有多个内存模块，请使用规格相同的 QNAP 模块，并参考硬件用户手册安装兼容的 QNAP 内存模块。
警告：使用不受支持的模块可能导致性能下降、引发错误或使操作系统无法启动。
QNAP 有权视供货商产品供货情况，更换部分零件或配件。其兼容性与稳定性皆经过相同严格的测试检验，请用户放心使用。
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
设计及规格若有变更，恕不另行通知。产品图仅供示意，实际产品可能有所不同。
由于屏幕显示误差，产品实际颜色亦可能和网站所示有所不同。
